Bus terminating plug M12 male A-cod.
Devicenet
| Art.No.: | 7000-13461-0000000 |
| Weight: | 0.012 kg |
| Country of origin: | DE |
US
Available
EU
Call for Availability
Description
DeviceNet, CANopen
Terminating resistor
Male

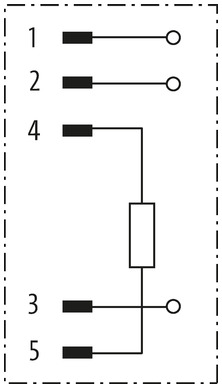

M12 – M12, 5-pole (circuit diagram)
A-coded
Terminating resistor
Male
M12 – M12, 5-pole (circuit diagram)
A-coded
Technical Data
Technical Data
| Operating voltage | max. 30 V DC |
|---|---|
| Operating voltage (only UL listed) | max. 30 V DC |
| Rated surge voltage | 0.8 kV |
| Operating current per contact | max. 4 A |
| No. of poles | 5 |
| Material group | IEC 60664-1, category I |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP67 inserted and tightened (EN 60529) |
| Material | PUR |
| Locking material | Zinc die casting, matte nickel plated |
| Compression gland | M12 (SW13) |
General data
| Pollution Degree | 3 |
|---|---|
| Temperature range | -25...+85 °C |
Commercial data
| ECLASS-6.0 | 19070403 |
|---|---|
| ECLASS-6.1 | 27260702 |
| ECLASS-7.0 | 27440390 |
| ECLASS-8.0 | 27440190 |
| ECLASS-9.0 | 27440190 |
| ECLASS-10.1 | 27440190 |
| ECLASS-11.1 | 27440190 |
| ECLASS-12.0 | 27440190 |
| ETIM-5.0 | EC001855 |
| customs tariff number | 85332100 |
| EAN | 4048879198769 |
| Packaging unit | 1 |
