Bus terminating plug M12 male B-cod. F&B
CUBE67 HD
| Art.No.: | 7014-15041-0000000 |
| Weight: | 0.011 kg |
| Country of origin: | DE |
US
Call for Availability
EU
Call for Availability
Description
Cube67
Terminating resistor

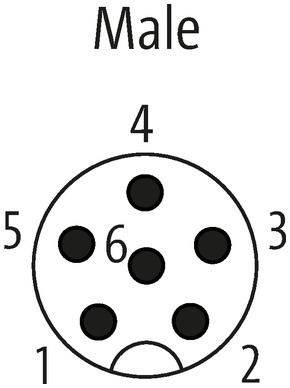

Male
M12, 6-pole
A-coded
Stainless steel 1.4404 (V4A)
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Terminating resistor
Male
M12, 6-pole
A-coded
Stainless steel 1.4404 (V4A)
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Technical Data
Form
| Form | 15041 |
|---|
Technical Data
| Operating voltage | max. 30 V DC |
|---|---|
| Operating voltage (only UL listed) | max. 30 V DC |
| Rated surge voltage | 0.8 kV |
| Operating current per contact | max. 4 A |
| No. of poles | 6 |
| Material group | IEC 60664-1, category I |
| Coding | A-coded |
| LED display | no |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP67 inserted and tightened (EN 60529) |
| Material | PUR |
| Locking material | Stainless steel 1.4404 (V4A) |
| Compression gland | M12 (SW14) |
General data
| Mounting method | inserted, tightened |
|---|---|
| Material contact | Copper alloy |
| Material contact surface | Au |
| Pollution Degree | 3 |
| Temperature range | -25...+85 °C |
| Product article number of manufacturer | 7014-15041-0000000 |
|---|
Commercial data
| ECLASS-6.0 | 19070403 |
|---|---|
| ECLASS-6.1 | 27260702 |
| ECLASS-7.0 | 27440390 |
| ECLASS-8.0 | 27440190 |
| ECLASS-9.0 | 27440190 |
| ECLASS-10.1 | 27440190 |
| ECLASS-11.1 | 27440190 |
| ECLASS-12.0 | 27440190 |
| ETIM-5.0 | EC000830 |
| customs tariff number | 85332100 |
| EAN | 4048879706919 |
| Packaging unit | 1 |
