M12 MALE 0° CODING PLUG JUMPER 1-3
Art.No.: | 7000-13482-0000000 |
Weight: | 0.009 kg |
Country of origin: | DE |
US
Call for Availability
EU
Call for Availability
Description
Terminating plug
Male M12

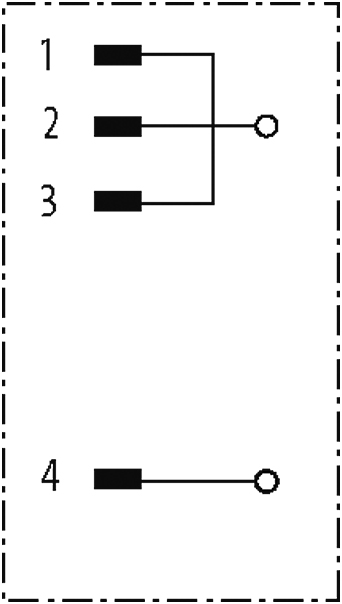

4-pole (bridged)
Male M12
4-pole (bridged)
Technical Data
Technical Data
Operating voltage | max. 30 V AC/DC |
---|---|
Rated surge voltage | 0.8 kV |
Operating current per contact | max. 4 A |
No. of poles | 4 |
Material group | IEC 60664-1, category I |
Coding | A-coded |
Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
Protection | IP67 inserted and tightened (EN 60529) |
Locking material | Zinc die casting, matte nickel plated |
Compression gland | M12 (SW13) |
General data
Standards | DIN EN 61076-2-101 (M12) |
---|---|
Mounting method | inserted, tightened |
Pollution Degree | 3 |
Temperature range | -25...+85 °C, depending on cable quality |
Commercial data
ECLASS-6.0 | 23111190 |
---|---|
ECLASS-6.1 | 27260702 |
ECLASS-7.0 | 27440390 |
ECLASS-8.0 | 27440190 |
ECLASS-9.0 | 27440190 |
ECLASS-10.1 | 27440190 |
ECLASS-11.1 | 27440190 |
ECLASS-12.0 | 27440190 |
ETIM-5.0 | EC001855 |
customs tariff number | 85366990 |
EAN | 4048879714310 |
Packaging unit | 1 |
