Adaptor M12 male / M8 female A-cod. V2A
4-pol., conf. 1,2,3,4
| Art.No.: | 7002-42211-0000000 |
| Weight: | 0.013 kg |
| Country of origin: | DE |
US
Call for Availability
EU
Call for Availability
Description

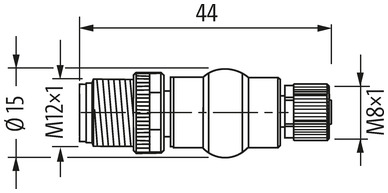

Adapter
Male - female
M12 – M8, 4-pole
Stainless steel 1.4305 (V2A/M12) / 1.4404 (V4A/M8)
for M12 distribution box, 4-pole
Art-No. 7005 - M12/M8 Lite - (plastic hexagonal screw) on request
Male - female
M12 – M8, 4-pole
Stainless steel 1.4305 (V2A/M12) / 1.4404 (V4A/M8)
for M12 distribution box, 4-pole
Art-No. 7005 - M12/M8 Lite - (plastic hexagonal screw) on request
Technical Data
Side 1
| Tightening torque | 0,6 Nm |
|---|---|
| Family construction form | M12 |
| Thread | M12 x 1 |
| Width across flats | SW13 |
Side 2
| Tightening torque | 0,4 Nm |
|---|---|
| Family construction form | M8 |
| Thread | M8 x 1 |
| Width across flats | SW9 |
Electrical data | Supply
| Operating voltage AC max. | 50 V |
|---|---|
| Operating voltage DC max. | 60 V |
| Operating voltage AC max. (UL-listed) | 30 V |
| Operating voltage DC max. (UL-listed) | 30 V |
| Current operating per contact max. | 4 A |
Diagnostics
| Status indication LED | no |
|---|
Installation | Connection
| Family construction form | M12 |
|---|---|
| Mating cycles min. | 100 |
Installation | Pin assignment
| Coding | A |
|---|---|
| No. of poles | 4 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67 |
|---|---|
| Additional condition protection degree | screwed, mounted |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Coating contact | gold plated |
|---|---|
| Material gasket | FKM |
| Material housing | PUR |
| Material contact | Copper alloy |
| Locking material | Stainless steel 1.4305 (V2A) |
| Locking material screw | Stainless steel 1.4404 (V4A) |
Mechanical data | Mounting data
| Mounting method | inserted, screwed |
|---|
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
Important installation notes
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
|---|---|
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
Conformity
| Product standard | DIN EN 61076-2-101 (M12), DIN EN 61076-2-114 (M8) |
|---|
Commercial data
| ECLASS-6.0 | 27279220 |
|---|---|
| ECLASS-6.1 | 27260702 |
| ECLASS-7.0 | 27440102 |
| ECLASS-8.0 | 27440102 |
| ECLASS-9.0 | 27440106 |
| ECLASS-10.1 | 27440102 |
| ECLASS-11.1 | 27440102 |
| ECLASS-12.0 | 27440106 |
| ETIM-5.0 | EC001855 |
| customs tariff number | 85366990 |
| GTIN | 4048879318242 |
| Packaging unit | 1 |
