Cable drum Ø 355mm  7000-C0101-7050000
Product may differ from image

Cable drum Ø 355mm

PUR 12x0.14 bk UL/CSA+drag ch. 100m
Art.No.: 7000-C0101-7050000
Weight: 5.303 kg
Country of origin:  IT
US Available
EU Produced for you with priority
 Product Comparison
List price per piece:

Description

Cable drum (100 m)
PUR (UL/CSA)
12× 0.14 mm², black
suitable for C-tracks
2 Mio.

Cables
Cable identification 705
Approval (cable) UL (AWM-Style 20233/10493), CSA; CE conform
Cable weight [g/m] 45,1 g
Material wire Cu wire, bare
Resistor (core) max. 138 Ω/km (20 °C)
Single wire Ø (core) 0.1 mm
Construction (core) 18× 0.1 mm (multi-strand wire class 6)
Diameter (core) 12× 0.14 mm²
AWG similar to AWG 26
Material wire isolation PP
Material property (wire isolation) CFC-, halogen-, cadmium-, silicone- and lead-free
Wire-Ø incl. isolation 1.0 mm ±5%

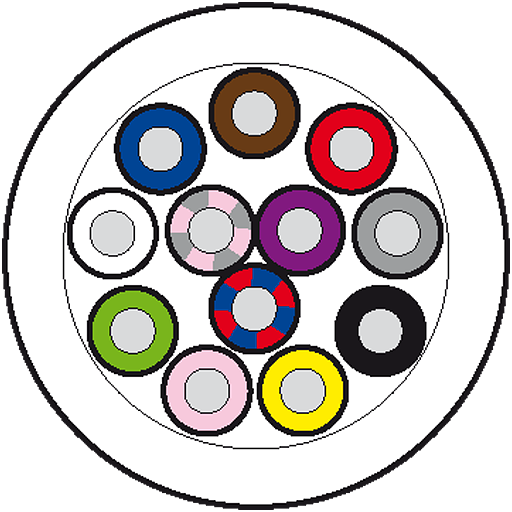

Color/numbering of wires br, rd, gr, bk, ye, pk, gn, wh, bl, rdbl, grpk, vi
Shield no
Material jacket PUR
Shore hardness (jacket) 92 ±5 A
Outer-Ø (jacket) 6.0 mm ±5%
Color jacket black
Cable print -
chemical resistance good resistance to oil, gasoline and chemicals (VDE 0472 Teil 803 Test B)
Nominal voltage 300 V AC
Test voltage 1500 V AC
Temperature range (fixed) -40...+85 °C
Temperature range (mobile) -25...+85 °C
Bend radius (fixed) 7.5× outer Ø
Bend radius (moving) 10× outer Ø
No. of bending cycles (C-track) max. 2 Mio. (25 °C)
Travel speed (C-track) max. 3.3 m/s
Acceleration (C-track) max. 5 m/s²
Torsion stress ±180°/m
Product article number of manufacturer 7000-C0101-7050000

ECLASS-6.0 27062011
ECLASS-6.1 27061801
ECLASS-7.0 27061801
ECLASS-8.0 27061801
ECLASS-9.0 27061801
ECLASS-10.1 27061801
ECLASS-11.1 27061801
ECLASS-12.0 27061801
ETIM-5.0 EC001855
customs tariff number 85444995
EAN 4048879413466
Packaging unit 1


Data Regarding Article:
  • Download Data Sheet
  • Download Information: Certificate of conformity Murrelektronik GmbH 14-11-20_(5) RoHS REACh no exception_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 04-02-23_(1) China RoHS 2 e_DoC_z_a.pdf
