M12 Power male 90° / female 90° K-cod.

PUR 5x1.5 bk UL/CSA+drag ch. 1.5m
Art.No.: 7000-P3271-P050150
Weight: 0.262 kg
Country of origin:  DE
US Call for Availability
EU Call for Availability
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description


Power
Male 90° – female 90°

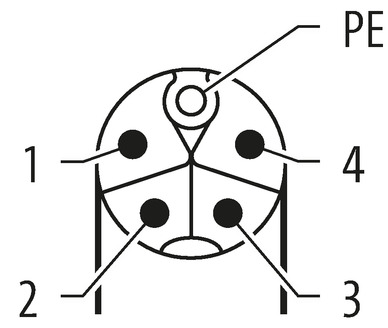

M12 – M12, 5-pole
K-coded
with cable sleeves
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Certificate
Certificate
Certificate
Certificate
Certificate

Cable length 1,5 m
Technical Data
Operating voltage max. 600 V AC
Rated surge voltage 6.0 kV
Operating current per contact max. 12 A
No. of poles 5
Material group IEC 60664-1, category I
Coding K-coded
LED display no
Locking of ports Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Protection IP65 and IP67 when plugged and screwed down (EN 60529)
Material PUR
Locking material Zinc die casting, matte nickel plated
suitable for corrugated tube (internal Ø) 16.4 mm
Compression gland M12 (SW17)
General data
Standards IEC 61076-2-111 (M12)
Mounting method inserted, tightened
Material contact Copper alloy
Material contact surface Au
Material gasket FKM
Pollution Degree 3
Temperature range -25...+85 °C, depending on cable quality
Cable
Cable identification P05
Cable Type 3 (PUR)
Cable weight [g/m] 129,8 g
Material wire Cu wire, bare
Resistor (core) max. 13.3 Ω/km (20 °C)
Single wire Ø (core) 0.15 mm
Construction (core) 84× 0.15 mm (multi-strand wire class 6)
Diameter (core) 5× 1.5 mm²
AWG similar to AWG 16
Material wire isolation PP
Material property (wire isolation) CFC-, halogen-, cadmium-, silicone- and lead-free
Shore hardness (wire isolation) 60 ±5 D
Wire-Ø incl. isolation 2.3 mm ±5%
Color/numbering of wires bk, bl, wh, br, num; gnye longitudinally striped
Stranding combination 5 wires twisted around central filler
Shield no
Material jacket PUR
Material property (jacket) CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Shore hardness (jacket) 90 ±5 A
Outer-Ø (jacket) 8.2 mm ±5%
Color jacket black
chemical resistance good resistance to oil, gasoline and chemicals (EN 60811-404)
thermal resistance flame retardant UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
Nominal voltage 1000 V AC
Test voltage 10.0 kV
Current load capacity to DIN VDE 0298-4
Temperature range (fixed) -50...+80 °C, (+90 °C at max. 10 000 operating hours)
Temperature range (mobile) -25...+80 °C, (+90 °C at max. 10 000 operating hours)
Bend radius (fixed) 7.5× outer Ø
Bend radius (moving) 10× outer Ø
No. of bending cycles (C-track) max. 5 Mio. (25 °C)
Travel speed (C-track) max. 3.3 m/s
Acceleration (C-track) max. 5 m/s²
Torsion stress ±180°/m
No. of torsion cycles max. 2 Mio. (25 °C)
Torsion speed 35 cycles/min

ECLASS-6.0 27279218
ECLASS-6.1 27279218
ECLASS-7.0 27279218
ECLASS-8.0 27279218
ECLASS-9.0 27060327
ECLASS-10.1 27060311
ECLASS-11.1 27060311
ECLASS-12.0 27060327
ETIM-5.0 EC001855
customs tariff number 85444290
EAN 4048879756235
Packaging unit 1


Data Regarding Article:
  • Download Product-PDF
  • Download Construction files: STP 7000-P3271_stp_x_a.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 07-02-23_(5) China RoHS 2 50EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 10-11-20_(1) RoHS REACh exception 6c_DoC_z_a.pdf
