M12 male 0° D-cod. IDC  7000-14521-0000000
Product may differ from image

M12 male 0° D-cod. IDC

4-pol., 0,14 - 0,34mm², 4,5 - 8,8mm, shielded
Art.No.: 7000-14521-0000000
Alternative product:    7000-14591-0000000
Weight: 0.054 kg
Country of origin:  DE
US Available
EU Available
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description

Ethernet CAT5

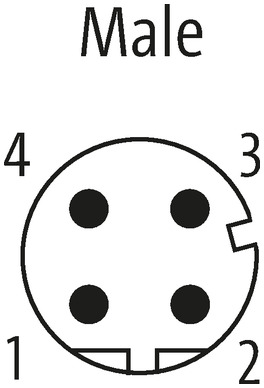

Male straight
M12, 4-pole
D-coded
shielded
IDC terminals
Sealing range (cable Ø): 4.5...8.8 mm

Form
Form 14521
Technical Data
Operating voltage max. 50 V AC/DC
Operating current per contact max. 4 A
Transfer parameters CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1)
Transfer rate up to 100 Mbit/s full duplex
Coding M12, D-coded
Locking of ports Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Connection cross section 0.14...0.34 mm²
Sealing range (cable Ø) 4.5...8.8 mm
Protection IP65 and IP67 when plugged and screwed down (EN 60529)
Locking material Zinc die casting, matte nickel plated
General data
Temperature range -40...+85 °C
Product article number of manufacturer 7000-14521-0000000

ECLASS-6.0 27279221
ECLASS-7.0 27440104
ECLASS-8.0 27440104
ECLASS-9.0 27440102
ECLASS-10.1 27440102
ECLASS-11.1 27440102
ECLASS-12.0 27440116
ETIM-5.0 EC002635

customs tariff number 85366990
GTIN 4048879197489
Packaging unit 1


Data Regarding Article:
  • Download Product-PDF
  • Download Approval: UL Registered CA 7000-14521-0000000_E224242-ECBT8_urc_z_b.pdf
  • Download Approval: UL Registered US 7000-14521-0000000_E224242-ECBT2_ur_z_b.pdf
  • Download Construction files: STP 7000-14521_stp_x_a.zip
  • Download Document: Installation guide 7000-14521-0000000_ina_x_02.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 07-02-23_(5) China RoHS 2 50EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 10-11-20_(1) RoHS REACh exception 6c_DoC_z_a.pdf
  • Download Information: Certificate of conformity UKCA con_01-10.21_uk_z_b.pdf
  • Download Information: EU declaration of conformity con_01-10.21_ce_z_b.pdf
