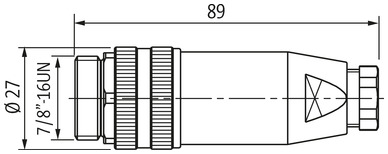

7/8'' male 0° screw terminal
5-pol., max. 1,5mm², 6 -8mm
| Art.No.: | 7000-78081-0000000 |
| Alternative product: | 7000-78091-0000000 |
| Weight: | 0.056 kg |
| Country of origin: | DE |
US
Available
EU
Available
Description
Male straight
7/8" (5-pole)
Screw terminals
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
7/8" (5-pole)
Screw terminals
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Technical Data
Technical Data
| Operating voltage | max. 250 V AC/DC |
|---|---|
| Operating current per contact | max. 9 A |
| Locking of ports | Screw thread 7/8" (recommended torque 1.5 Nm) self-securing |
| Connection cross section | max. 1.5 mm² |
| Sealing range (cable Ø) | 6...8 mm |
| Protection | IP67 inserted and tightened (EN 60529) |
General data
| Temperature range | -25...+85 °C |
|---|
Commercial data
| ECLASS-6.0 | 27279218 |
|---|---|
| ECLASS-7.0 | 27279218 |
| ECLASS-8.0 | 27279218 |
| ECLASS-9.0 | 27060311 |
| ECLASS-10.1 | 27440102 |
| ECLASS-11.1 | 27440102 |
| ECLASS-12.0 | 27440116 |
| ETIM-5.0 | EC002635 |
| customs tariff number | 85366990 |
| EAN | 4048879134781 |
| Packaging unit | 1 |
