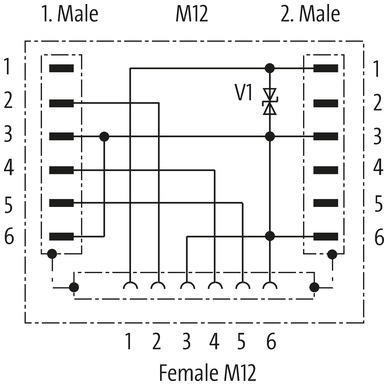

T-Coupler M12 female/ 2x M12 male A-cod. shielded
6-pol., CUBE67
| Art.No.: | 7000-46101-0000000 |
| Weight: | 0.034 kg |
| Country of origin: | DE |
US
Call for Availability
EU
Available
Description
Cube67 additional actuator power supply
T-coupler
Male straight – females straight
M12 – M12, 6-pole
A-coded
shielded
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
T-coupler
Male straight – females straight
M12 – M12, 6-pole
A-coded
shielded
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Technical Data
Technical Data
| Operating voltage | 18...30 V DC |
|---|---|
| Operating voltage (only UL listed) | max. 30 V DC |
| Rated surge voltage | 0.8 kV |
| Operating current per contact | max. 4 A |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP67 inserted and tightened (EN 60529) |
General data
| Temperature range | -25...+85 °C |
|---|
classifications
| ECLASS-6.0 | 27143423 |
|---|---|
| ECLASS-7.0 | 27449001 |
| ECLASS-8.0 | 27449001 |
| ECLASS-9.0 | 27440321 |
| ECLASS-10.1 | 27440106 |
| ECLASS-11.1 | 27440106 |
| ECLASS-12.0 | 27440106 |
| ETIM-5.0 | EC001855 |
Commercial data
| customs tariff number | 85366990 |
|---|---|
| GTIN | 4048879139908 |
| Packaging unit | 1 |
