Y-Distributor M12 male / M12 female 0° A-cod.  7700-40701-U030100
Product may differ from image

Y-Distributor M12 male / M12 female 0° A-cod.

TPE 3x22AWG ye UL/CSA, ITC/PLTC 1m
Art.No.: 7700-40701-U030100
Weight: 0.108 kg
Country of origin:  DE
US Available
EU Call for Availability
 Product Comparison
List price per piece:

Description

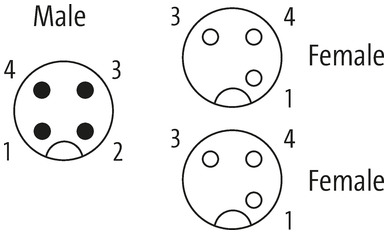

Y-connector M12 – M12, 4/3-pole
Male straight – females straight
USA
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Certificate

Form
Form 40701
Technical Data
Operating voltage max. 250 V AC/DC
Operating voltage (only UL listed) 30 V AC/DC
Rated surge voltage 2.5 kV
Operating current per contact max. 4 A
No. of poles 4-/3-pole
Material group IEC 60664-1, category I
Coding A-coded
LED display no
Locking of ports Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Protection IP65, IP66K, IP67 inserted and tightened (EN 60529)
Material PUR
Locking material Zinc die casting, matte nickel plated
suitable for corrugated tube (internal Ø) 10 mm
Compression gland M12 (SW13)
General data
Standards DIN EN 61076-2-101 (M12)
Mounting method inserted, tightened
Material contact Copper alloy
Material contact surface Au
Material gasket FKM
Pollution Degree 3
Temperature range -25...+85 °C, depending on cable quality
Cables
Cable identification U03
Approval (cable) UL (AWM-Style 20626/1731), CSA; CE conform
Cable weight [g/m] 35,97 g
Material wire Cu wire, bare
Resistor (core) max. 46.9 Ω/km (20 °C)
Single wire Ø (core) 0.16 mm
Construction (core) 19× 0.16 mm (multi-strand wire class 5)
Diameter (core) 1× 3× AWG22/19 (0.382)
Material wire isolation semi-rigid PVC
Wire-Ø incl. isolation 1.27m ±5%
Color/numbering of wires br, bk, bl
Stranding combination 3 wires twisted
Material jacket TPE
Outer-Ø (jacket) 4.9 mm ±5%
Color jacket yellow
Jacket Color yellow
chemical resistance good resistance to oil, gasoline and chemicals
thermal resistance flame retardant
Nominal voltage 300 V AC
Test voltage 2000 V AC
Current load capacity to DIN VDE 0298-4
Temperature range (fixed) -40...+105 °C
Temperature range (mobile) -20...+90 °C
Bend radius (fixed) 5× outer Ø
Bend radius (moving) 10× outer Ø
No. of bending cycles (C-track) max. 10 Mio. (25 °C)
Torsion stress ±180°/m
Product article number of manufacturer 7700-40701-U030100
Cable length 1 m

ECLASS-6.0 27279218
ECLASS-7.0 27279218
ECLASS-8.0 27279218
ECLASS-9.0 27060311
ECLASS-10.1 27060313
ECLASS-11.1 27060313
ECLASS-12.0 27060313
ETIM-5.0 EC001855
customs tariff number 85444290
EAN 4048879753784
Packaging unit 1


Data Regarding Article:
  • Download Data Sheet
  • Download Certificate 7000-18001_ax_2_k.pdf
  • Download Construction files: STP 7000-40701_stp_x_c.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 14-11-20_(5) RoHS REACh no exception_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
