MOTOR SUPPRESSOR

Varistor, 3x575VAC/20kW

Art.No.:	23146
Weight:	0.075 kg
Country of origin:	CZ

US Call for Availability

EU Call for Availability

Find similar Product

Ask question

Recommend Product

Product Comparison

Download to the Data Cart

Download to Easy-Import-Export

Description

3× 575 V AC

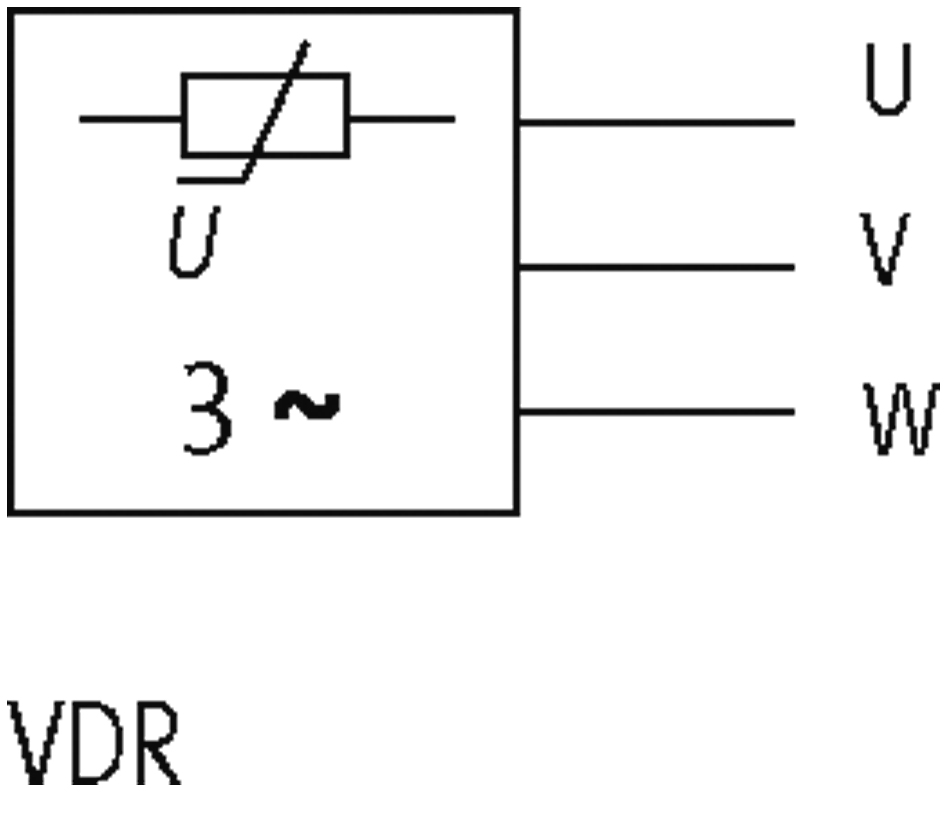

VDR
Suppressors for other voltages, frequencies, and motor ratings available on request. Do not use RC motor suppressors with frequency inverters.

Technical Data

Frequency	10...400 Hz
Input voltage	575...575 V AC
Material	Flame retardant plastic acc. to (UL 94)
Ring terminals	isolated M6
Potting compound	2-component epoxy

General data

Mounting method	on motor terminal box with plug connector
Temperature range	-20...+60 °C
Connection	approx. 150 mm, single cores 1 mm²
Dimensions H×W×D	39×39×44 mm

Commercial data

ECLASS-6.0	27371013
ECLASS-6.1	27371013
ECLASS-7.0	27371013
ECLASS-8.0	27371013
ECLASS-9.0	27371013
ECLASS-10.1	27371013
ECLASS-11.1	27371013
ECLASS-12.0	27371013
ETIM-5.0	EC000197
customs tariff number	85363010
EAN	4048879019095
Packaging unit	1

Downloads

Data Regarding Article:

Download Product-PDF
Download Approval: EAC 23146_ЕАЭС RU С-DE.АБ53.В.03601-2027.02.14_eac_z_b.pdf
Download Approval: UL Registered CA 23146_E140415-NKCR8_urc_z_c.pdf
Download Approval: UL Registered US 23146_E140415-NKCR2_ur_z_c.pdf
Download Document: Product data 23120_pd_x_10.zip
Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
Download Information: Certificate of conformity Murrelektronik GmbH 04-02-23_(1) China RoHS 2 e_DoC_z_a.pdf
Download Information: Certificate of conformity Murrelektronik GmbH 14-11-20_(5) RoHS REACh no exception_DoC_z_a.pdf
Download Information: Certificate of conformity UKCA 23146_04-02.21_uk_z_a.pdf
Download Information: EU declaration of conformity 23146_04-02.21_ce_z_a.pdf
