SIEMENS CONTACTOR SUPPRESSOR

Zener diode, 24VDC

US Call for Availability

EU Call for Availability

24 V DC

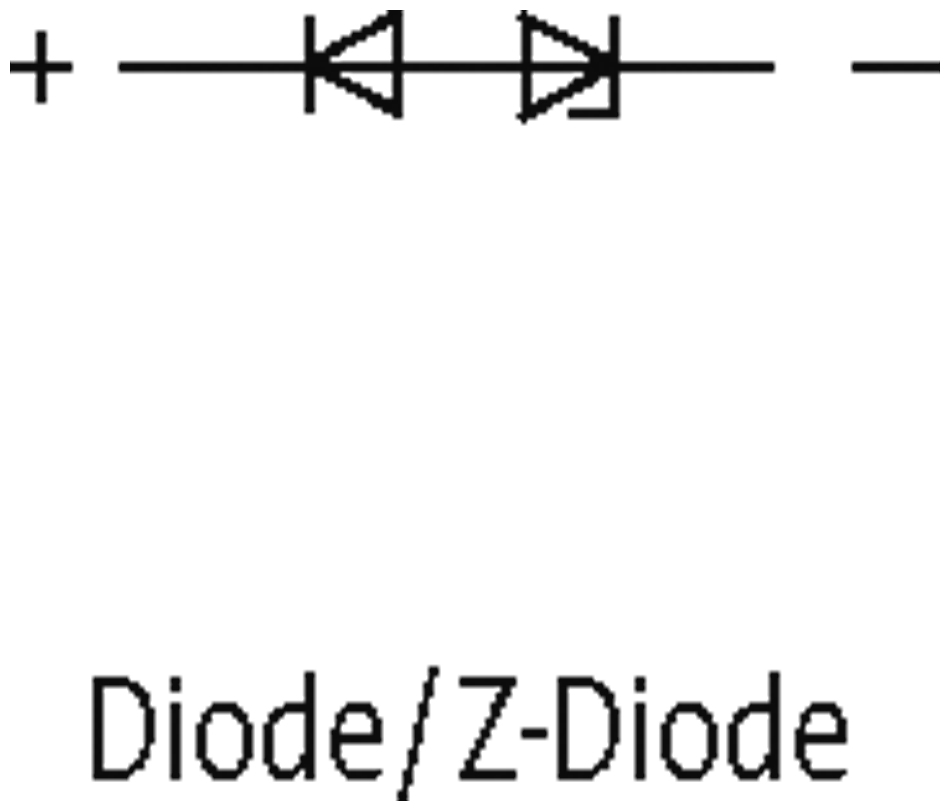

Diode/Z-Diode
For other configurations and voltages, please inquire.

Input voltage	12...30 V DC
Material	Flame retardant plastic acc. to (UL 94)
Damping factor	approx. 1.5× UN
Connection wires	self-securing cable forks

General data

Temperature range	-20...+70 °C
Dimensions H×W×D	11×27×24 mm

Appropriate contactors

	3 TH 3/4/8; 3 TF 30...45; 3 TB 40...3 TB 44

Data Regarding Article:

Download Product-PDF
Download Approval: EAC 26051_ЕАЭС RU С-DE.АБ53.В.03601-2027.02.14_eac_z_b.pdf
Download Construction files: DXF 26051_dxf_x_a.zip
Download Construction files: STP 26051_stp_x_a.zip
Download Document: Product data 22002_pd_x_11.zip
Download Information: Certificate of conformity Murrelektronik GmbH 13-11-20_(2) RoHS REACh exception 7cI_DoC_z_c.pdf
Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
Download Information: Certificate of conformity Murrelektronik GmbH 04-02-23_(1) China RoHS 2 e_DoC_z_a.pdf
Download Information: Certificate of conformity UKCA 26051_08-06.21_uk_z_a.pdf
Download Information: EU declaration of conformity 26051_08-06.21_ce_z_a.pdf
