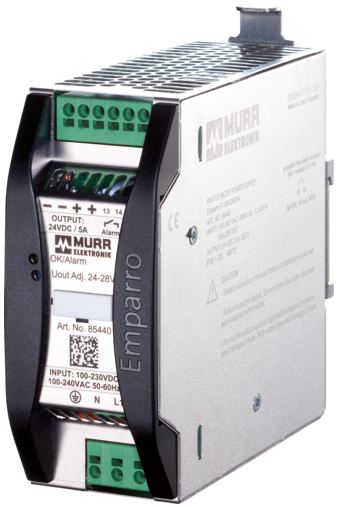

IN: 100-240VAC OUT: 24-28VDC/5A
Art.No.: 85440
Weight: 0.66 kg
Country of origin:  CZ
US Available
EU Call for Availability
 Product Comparison
List price per piece:


INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 24...28 V DC
Current: 5 A
Certificates as JSON - filtered
Certificates as JSON - filtered
Certificates as JSON - filtered

General data
Standards IEC 61010-2-201, EN 61204-3, EN 55011 B, EN 61000-3-2, SEMI F47
Mounting method DIN-rail mountable TH35 (EN 60715)
Temperature range -40...+60 °C, ...+70 °C derating (storage temperature -40...+80 °C)
Relative humidity 5...95%, no condensation
Protection IP20
Efficiency 92.7% (110 V AC); 94.5% (230 V AC)
Connection Push-In spring clamp terminals
Dimensions H×W×D 123×50×138 mm
Output voltage 24 V DC (SELV), ±1%; 24...28 V adjustable
Power Boost Iout N × 150% (min. 4 s)
LED display LED (green): OK; LED (red): overload, overheating or short-circuit
Output current 5 A
Mains failure bridging time min. 30 ms (100 V AC); 5 A (24 V DC)
Ripple max. 50 mV eff/rms
Spikes max. 200 mV ss/pp
Unit protection short-circuit and overload protected
Parallel usage/serial usage max. 5 units/max. 2 units
Input voltage 85...265 V AC/90...250 V DC
Input current 1.3 A (100 V AC); 0.61 A (240 V AC)
Inrush current after 1 ms max. 5.5 A (230 V AC)
Power factor 0.87 (230 V AC)
Frequency 50...60 Hz
Input fuse (internal) 6.3 A (T)
Article No. 85440

customs tariff number 85044090
EAN 4048879402903
eClass 27049002
Packaging unit 1

Data Regarding Article:
  • Download Data Sheet
  • Download Approval: EAC 85440_ЕАЭС RU С-DE.АБ53.В.03597-2027.02.14_eac_z_b.pdf
  • Download Approval: UL Listed CA 85440_E200364-NMTR7_ulc_z_a.pdf
  • Download Approval: UL Listed US 85440_E200364-NMTR_ul_z_b.pdf
  • Download Approval: UL Registered CA 85440_E181433-QQGQ8_urc_z_b.pdf
  • Download Approval: UL Registered US 85440_E181433-QQGQ2_ur_z_b.pdf
  • Download Certificate: CB  85440_DK-33823-UL_cb_z_a.pdf
  • Download Certificate: GL  85440_TAA00002EJ-2024.07.17_DNVGL_gl_z_b.pdf
  • Download Construction files: DXF
  • Download Construction files: P8
  • Download Construction files: STP
  • Download Document: Installation guide 85440_ina_4_23.pdf
  • Download Document: Product data
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10.21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 16-12.20_(2) China RoHS 2 20EEP_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 13-11.20_(2) RoHS&REACh exception 7cI_DoC_z_c.pdf
  • Download Information: Certificate of conformity UKCA 85440_08-10.20_uk_z_a.pdf
  • Download Information: EU declaration of conformity 85440_05-08.22_ce_z_d.pdf
  • Download Information: MTBF Report 85440_SN29500(40°C)-BerechnungV1.4_mtbf_p_d.pdf
  • Download Information: MTTF Report 85440_SN29500(40°C)-BerechnungV1.4_mttf_p_b.pdf
