MIRO 12.4 24V-2U OUTPUT RELAY  52103
Product may differ from image

MIRO 12.4 24V-2U OUTPUT RELAY

IN: 24 VAC/DC - OUT: 250 VAC/DC / 6 A
Art.No.: 52103
Alternative product:    6652103
Weight: 0.054 kg
Country of origin:  CZ
US Available
EU Available
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description

2 NO/NC contacts
6 A
24 V AC/DC
Screw terminals
Certificate
Certificate
Certificate
Certificate

Input
Connection voltage - current 24 V AC/DC (19.2...30 V AC/DC) - 20 mA
LED display LED (green)
Output
Min. load current 100 mA (12 V DC)
Contact material Ag Sn O2
Energize/release/contact bounce time 10/15/1.5 ms
Switching voltage max. 250 V AC/DC
Switching frequency max. 10 Hz
Power rating (voltage dependent) max. 1500 VA/120 W
Switching current per output max. 6 A
General data
Mounting method DIN-rail mountable (EN 60715)
Temperature range -20...+55 °C
Test isolation voltage 4 kV; safe separation (EN 60947-1)
Mech./ elect. life 20 000 000 switching cycles/load dependent

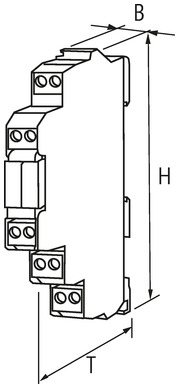

Dimensions H×W×D 90×12.4×70 mm
Utilization category
AC-15 3 A (24/110/230 V AC)
AC-12 6 A (24/110/230 V AC)
DC-13 1 A (24 V DC); 0.2 A (110 V DC); 0.1 A (230 V DC)

ECLASS-6.0 27371001
ECLASS-6.1 27371601
ECLASS-7.0 27371601
ECLASS-8.0 27371601
ECLASS-9.0 27371601
ECLASS-10.1 27371601
ECLASS-11.1 27371601
ECLASS-12.0 27371601
ETIM-5.0 EC001437
customs tariff number 85364900
EAN 4048879000147
Packaging unit 1


Data Regarding Article:
  • Download Product-PDF
  • Download Approval: CCC  52103_2020970303000233-27.05.2030_ccc_z_g.pdf
  • Download Approval: UL Registered CA 52103_E140415-NKCR8_urc_z_c.pdf
  • Download Approval: UL Registered US 52103_E140415-NKCR2_ur_z_c.pdf
  • Download Construction files: DXF 52102_dxf_x_a.zip
  • Download Construction files: P8 52103_p8_2_60.zip
  • Download Construction files: STP 52102_stp_x_a.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 09-11-20_(3) RoHS REACh exception 6c 7cI_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity UKCA 52103_1253-04.16_uk_z_a.pdf
  • Download Information: EU declaration of conformity 52103_1253-04.16_ce_z_b.pdf
  • Download Information: MTTF Report 52103_SN29500(40°C)-BerechnungV1.4_mttf_p_a.pdf
