Xelity PROFINET Managed Switch 8x 10/100BT + 2x 10/100/1000BT IP67 M12L  58843

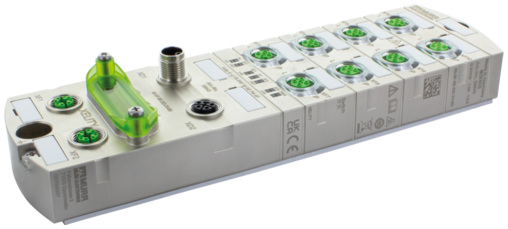

Product may differ from image

Xelity PROFINET Managed Switch 8x 10/100BT + 2x 10/100/1000BT IP67 M12L

4P
Art.No.: 58843
Weight: 0.91 kg
Country of origin:  DE
US Call for Availability
EU Available
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description

8+2 Port FE with PN
PROFINET - Managed Switch
M12 Power, 4-pole, L-coded
Connection cables are in the online shop under "Connection Technology".
Certificate
Certificate
Certificate
Bus technologies

Technical Data
Operating voltage 24 V DC (9...30 V DC)
Transfer rate 10/100/1000 Mbit/s full duplex
Operating modes Autocrossing Autonegotiation
General data
Mounting method 2-hole screw mounting
Temperature range -25...+55 °C
Transport temperature range -40...+85 °C
Housing Metal
Protection IP67
Dimensions H×W×D 224,5×63×37,4 mm
Diagnostic
Communication status via LED, LLDP
Monitoring - no voltage yes
Switch Management
Protocols DHCP, SNMP (v1, v2c, v3), RSTP, STP, LLDP, NTP, RMON, SSH (CLI) Syslog
NAT yes
Port Mirroring yes
VLAN (QoS) IEEE 802.p yes
Alarm contact no
Remote maintenance Open VPN
Webserver HTTP, HTTPS
Switch Form PROFINET - Managed Switch
PROFINET
Specification V2.4, Conformance Class B
Addressing DCP
FSU (Fast-Start-Up) no
PROFINET Netload Class III
MRP yes
Shared Device no
Connections
Fieldbus 2× M12 (female), X-coded; 8× M12 (female), D-coded
Supply 2× M12 Power, 4-pole, L-coded, 2× max. 16 A

ECLASS-6.1 19170106
ECLASS-7.0 19170106
ECLASS-8.0 19170106
ECLASS-9.0 19170401
ECLASS-10.1 19170401
ECLASS-11.1 19170401
ECLASS-12.0 19170401
customs tariff number 85176200
EAN 4048879866286
Packaging unit 1


Data Regarding Article:
  • Download Product-PDF
  • Download Approval: UL Listed CA 58843_E201820-NRAQ7_ulc_z_a.pdf
  • Download Approval: UL Listed US 58843_E201820-NRAQ_ul_z_a.pdf
  • Download Certificate: ProfiNet  58843_Z13401-14-06-2025-v2.4_pn_z_b.pdf
  • Download Configuration Files: GSDML 58841_XELITY_PN_KF0_x_11.zip
  • Download Construction files: DXF 58842_dxf_x_a.zip
  • Download Construction files: P8 58843_p8_2_10.zip
  • Download Construction files: STP 58842_stp_x_a.zip
  • Download Document: Installation guide 58842_ina_x_10.zip
  • Download Document: Product data 58843_pd_x_12.zip
  • Download Document: User manual 58841_hdb_x_13.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 07-11-20_(10) RoHS REACh exception 6c 7a 7cI_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity UKCA 58843_07-02.21_uk_z_a.pdf
  • Download Information: EU declaration of conformity 58843_07-02.21_ce_z_a.pdf
  • Download Information: MTTF Report 58843_SN29500(40°C)-Berechnung_mttf_p_a.pdf
