MTS 1-PHASE CONTROL AND ISOLATION TRANSFORMER

P: 100VA IN: 208...550VAC OUT: 2x115VAC
Art.No.: 86143
Weight: 2.1 kg
Country of origin:  CZ
US Call for Availability
EU Available
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description

Single-phase - Control and Isolation Transformers
100 VA
Isolation class T 40/B
Other voltages on request.
Certificate
Certificate
Certificate
Certificate

Input

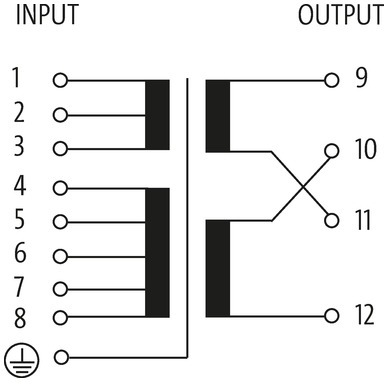

Input voltage 208, 230, 380, 400, 420, 440, 460, 480, 500, 525, 550 V AC
Inrush current 9.9 A (208 V AC); 3.8 A (550 V AC)
Short-circuit current 7.6 A (208 V AC); 2.9 A (550 V AC)
Input current 0.57 A (208 V AC); 0.21 A (550 V AC)
Frequency 50...60 Hz
Output
Output voltage 1× 230, 1× 115, 2× 115 V AC
Output rating 100 VA
General data
Standards EN 61558-1, EN 61558-2-4, EN 62041 category 0
Mounting method Long-hole mounting or DIN-rail mountable TH35 (EN 60715)
Temperature range -20...+40 °C (storage temperature -20...+80 °C)
Test isolation voltage 4 kV (prim./sec.)
Drill hole Ø 4.8×8.4 mm

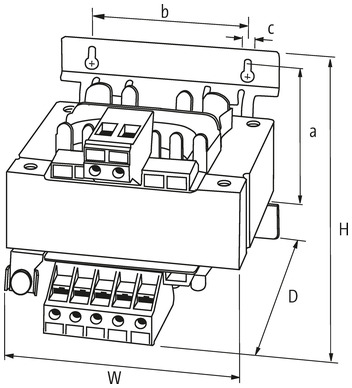

Fixing centers a×b×c 64.5×64 mm
Dimensions H×W×D 105×84×98 mm

ECLASS-6.0 27031302
ECLASS-6.1 27031302
ECLASS-7.0 27031302
ECLASS-8.0 27031302
ECLASS-9.0 27031302
ECLASS-10.1 27031302
ECLASS-11.1 27031302
ECLASS-12.0 27031302
ETIM-5.0 EC002486
customs tariff number 85043180
EAN 4048879438759
Packaging unit 1


Data Regarding Article:
  • Download Product-PDF
  • Download Approval: UL Registered CA 86143_E182075-XPTQ8_E207805-XORU8_urc_z_b.pdf
  • Download Approval: UL Registered US 86143_E182075-XPTQ2_E207805-XORU2_ur_z_b.pdf
  • Download Certificate: GL  86143_TAE00003WD-DNVGL-2025.06.18_gl_z_c.pdf
  • Download Construction files: DXF 86143_dxf_x_a.zip
  • Download Construction files: P8 86143_p8_2_50.zip
  • Download Construction files: STP 86143_stp_x_a.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 10-11-20_(1) RoHS REACh exception 6c_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 07-02-23_(5) China RoHS 2 50EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity UKCA 86143_143-04.16_uk_z_a.pdf
  • Download Information: EU declaration of conformity 86143_143-04.16_ce_z_c.pdf
