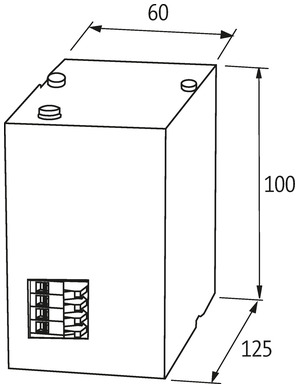

Zoom
MB CAP ULTRA ADD-ON-MODULE 85462
Product may differ from image

MB CAP ULTRA ADD-ON-MODULE

IN: 0-26,4VDC OUT:0-26,4VDC/3A for max.1A/21S
Art.No.: 85462
Alternative product:    85467
Weight: 0.6 kg
Country of origin:  DE
US Call for Availability
EU Call for Availability
Find similar Product
Ask question
 Recommend Product
 Product Comparison
List price per piece:

Description

INPUT: 24 V DC (SELV/PELV)
OUTPUT: max. 3 A
12 s (3 A); 36 s (1 A)
Certificate
Certificate
Certificate

General data
Standards EN 60950, EN 50178, SELV/PELV
Mounting method DIN-rail mountable TH35 (EN 60715)
Temperature range -20...+60 °C (storage temperature -20...+60 °C)
Efficiency 90%
Output
Output voltage 0...26.4 V DC
Buffer time 12 s (3 A); 36 s (1 A)
Output current max. 3 A (+60 °C)
Input
Input voltage 0...26.4 V DC
Input current 3 A
Product article number of manufacturer 85462

ECLASS-6.0 27049190
ECLASS-6.1 27049201
ECLASS-7.0 27049201
ECLASS-8.0 27049201
ECLASS-9.0 27049201
ECLASS-10.1 27040692
ECLASS-11.1 27040692
ECLASS-12.0 27040692
ETIM-5.0 EC002584
customs tariff number 85322900
EAN 4048879079792
Packaging unit 1


Data Regarding Article:
  • Download Data Sheet
  • Download Approval: UL Listed CA 85462_E200364_NMTR7_ulc_z_a.pdf
  • Download Approval: UL Listed US 85462_E200364-NMTR_ul_z_b.pdf
  • Download Construction files: P8 85462_p8_2_20.zip
  • Download Construction files: STP 85460_stp_x_a.zip
  • Download Document: Installation guide 85462_ina_2_14.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 07-02-23_(5) China RoHS 2 50EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 10-11-20_(1) RoHS REACh exception 6c_DoC_z_a.pdf
  • Download Information: Certificate of conformity UKCA 85462_03-03.22_uk_z_a.pdf
  • Download Information: EU declaration of conformity 85462_03-03.22_ce_z_c.pdf
  • Download Information: MTTF Report 85462_SN29500(40°C)-BerechnungV1.4_mttf_p_b.pdf
