Master Breakout Box NPN

MVP12V-ON9F-NPGH
Art.No.: 277416
Weight: 0.21 kg
Country of origin:  DE
US Call for Availability
EU Available
 Product Comparison
List price per piece:

Description

M12 plug connection
with LED for digital PNP-signals 24 V DC
Plastic housings with good resistance against chemicals and oils.
10-way
The resistance to aggressive media should be individually tested for your application. Further details on request.
Certificate
Certificate
Certificate

Gross weight 245 g
Product article number of manufacturer 277416
Shock resistance (EN IEC 60068-2-27) 50 g, 11 ms
Vibration resistance (EN IEC 60068-2-6) 0,75 mm (10 ... 70 Hz), 15 g (70 … 500 Hz)
CE 2014/30/EU & 2011/65/EU
UKCA EN IEC 61000-6-2: 2019 Electromagnetic compatibility (EMC) – Part 6-2: Generic standards – Immunity standard for industrial environments (IEC 61000-6-2:2016 EN 61000-6-3: 2007 + A1:2011 Electromagnetic compatibility (EMC) - Part 6-3: Generic standards - E
UL UL61010
Supply
Nominal current 1500 mA
Open-circuit current 110 mA
Operating voltage DC 24 V
Operating voltage DC max. 28 V
Operating voltage DC min. 18 V
Output
Output current 2000 mA
Electromagnetic Compatibility
Immunity to interference Immunitiy standard for industrial environments (IEC 61000-6-2)
Interference emission Emission standard for industrial environments (IEC 61000-6-4)
Electrical
Invers-polarity protection yes
Degree of protection (EN IEC 60529) IP65, IP67
Short-circuit protected yes
Installation height max. ASL 2000 m
GTIN 4048879887359
Operating temperature max. 45 °C
Operating temperature min. -25 °C
Storage temperature max. 70 °C
Storage temperature min. -25 °C

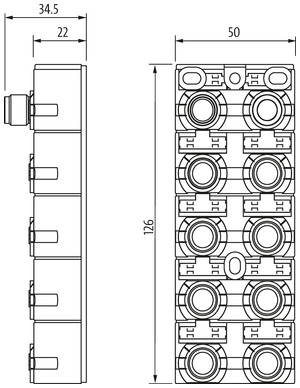

Height 34,5 mm
Length 126 mm
Width 50 mm
Installation measurement 75 mm
Net weight 210 g

customs tariff number 85389099
EAN 4048879887359
Packaging unit 1


Data Regarding Article:
  • Download Data Sheet
  • Download Approval: KC 277416_R-R-MuR-277413_kc_z_a.pdf
  • Download Approval: UL Listed CA 277416_E201820-NRAQ7_ulc_z_a.pdf
  • Download Approval: UL Listed US 277416_E201820-NRAQ_ul_z_a.pdf
  • Download Certificate: FCC 277416_SSDoC_fcc_z_a.zip
  • Download Construction files: DXF 277416_dxf_x_a.zip
  • Download Construction files: P8 277416_p8_2_10.zip
  • Download Construction files: STP 277416_stp_x_a.zip
  • Download Document: Installation guide 277411_ina_x_10.zip
  • Download Document: Product data 277416_pd_x_13.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 07-11-20_(10) RoHS REACh exception 6c 7a 7cI_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Download Information: Certificate of conformity UKCA 277416_17-02.21_uk_z_a.pdf
  • Download Information: EU declaration of conformity 277416_17-02.21_ce_z_a.pdf
  • Download Information: MTTF Report 277416_SN29500(40°C)-Berechnung_mttf_p_a.pdf
