CUBE20 AI4 U/I
Product may differ from image

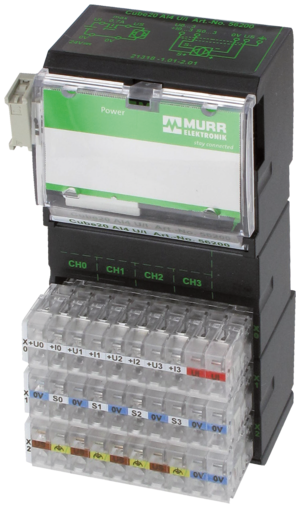

CUBE20 AI4 U/I

Art.No.: 56200
Weight: 0.18 kg
US Available
EU Call for Availability
 Product Comparison
List price per piece:
Expansion module
AI4 - (E) I
Voltage/current
Approvals
General data
Mounting method DIN-rail mountable (EN 60715)
Temperature range 0...+55 °C (storage temperature -40...+85 °C)
Protection IP20
Dimensions H×W×D 117×56×47 mm
Input
Connection Differential voltage/current input
Accuracy max. 0.3%
Conversion time (analog) max. 2 ms (per channel)
Resolution (analog) 15 Bit + sign
Internal communication
Current consumption max. 25 mA from system, max. 60 mA externally (UI)
Module supply via system connection
Connections
Fieldbus Ribbon cable connection
Sensor-system/actuator supply 4× spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A)
I/O ports 24× spring clamp plug-in terminals, max. 2.5 mm²
Diagnostic
Communication status via LED
Diagnostic via LED per module
Diagnostic via BUS per module and channel
Monitoring - under voltage yes
Monitoring - no voltage no
Wire break upper/lower limit overload per channel via LED and BUS
Short-circuit and overload yes
Commercial data
country of origin DE
customs tariff number 85176200
EAN 4048879049238
eClass 27242601
Packaging unit 1.000
