CUBE20S PROFIBUS BUS NODE  57101
Product may differ from image

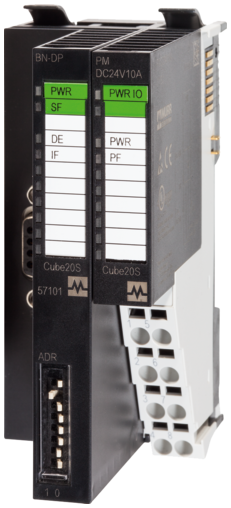

CUBE20S PROFIBUS BUS NODE

Art.No.: 57101
Weight: 0.155 kg
Country of origin:  TH
US Call for Availability
EU Available
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description

Bus nodes
PROFIBUS DP

Output
Output voltage (I/Os /Backplane) 24 V DC/5 V DC
Output current (I/Os /Backplane) 10 A/3 A
Connections
Fieldbus PROFIBUS 12 Mbit/s; SUB-D9
Sensor-system/actuator supply 4× spring clamp plug-in terminals, max. 1.5 mm² (max. 10 A)
Internal system connection 4× spring clamp plug-in terminals, max. 1.5 mm² (max. 10 A)
Cube system
Module capacity max. 64
I/O capacity max. 244 Byte (Input), max. 244 Byte (Output)
General data
Mounting method DIN-rail mountable (EN 60715)
Temperature range 0...+60 °C (storage temperature -25...+70 °C)
Protection IP20
Connection Spring clamp plug-in terminals: max. 1.5 mm² (max. 10 A)
Dimensions H×W×D 109×48.5×76.5 mm
Module supply
Operating voltage 24 V DC (EN 61131-2)
Current consumption max. 95 mA
PROFIBUS
Addressing Adress switch 1...125
Diagnostic
Communication status via LED
Diagnostic via BUS per module
Diagnostic via LED per module and channel
Actuator warning no
Monitoring - under voltage no
Monitoring - no voltage yes
Short-circuit and overload yes

ECLASS-6.0 27242608
ECLASS-6.1 27242608
ECLASS-7.0 27242608
ECLASS-8.0 27242608
ECLASS-9.0 27242608
ECLASS-10.1 27242608
ECLASS-11.1 27242608
ECLASS-12.0 27242608
ETIM-5.0 EC001604

customs tariff number 85389099
GTIN 4048879422307
Packaging unit 1
