MVP12, 6XM12, 5POLE, M23 19POL. CON.

Connector exit frontside
Art.No.: 27783
Weight: 0.121 kg
Country of origin:  DE
US Call for Availability
EU Available
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description


6-way, 5-pole
M23 plug connection
19-pole used
with LED for digital PNP-signals 24 V DC
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Certificate
Certificate

Technical Data
Operating voltage 24 V DC
Operating current per contact max. 4 A
Locking of ports Screw thread (M12×1 mm)
Protection IP67 inserted and tightened (EN 60529)
Housing Plastic, flame retardant
Signal per port 2
Total current max. 10 A
General data
Temperature range -20...+80 °C

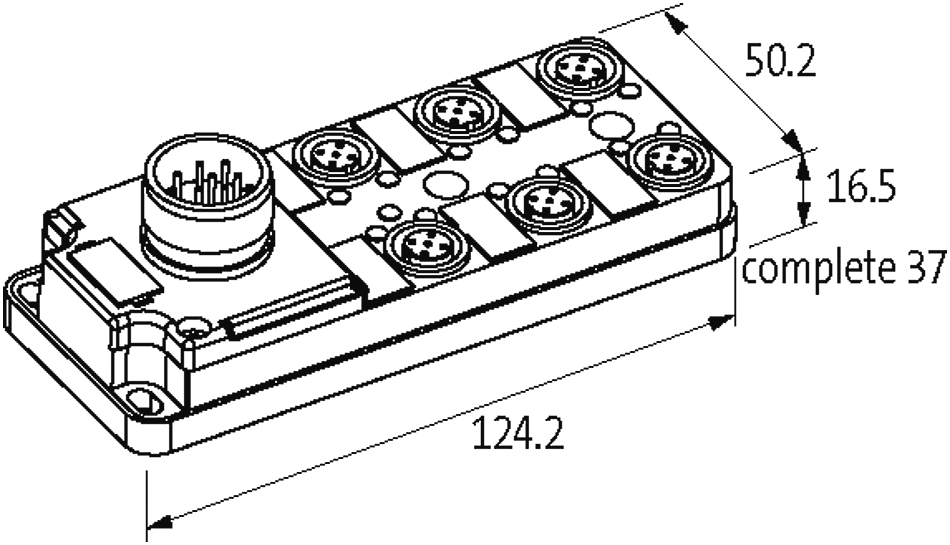

Dimensions H×W×D 99.2×50.2×16.5 mm
Contact Layout
PIN 1 (+)
PIN 2 (NC)/(S2)
PIN 3 (-)
PIN 4 (NO)/(S1)
PIN 5 (Earth)
LED (green): Power / LED (yellow): (S1/S2)

ECLASS-6.0 27279219
ECLASS-6.1 27279219
ECLASS-7.0 27279219
ECLASS-8.0 27279219
ECLASS-9.0 27440108
ECLASS-10.1 27440111
ECLASS-11.1 27440111
ECLASS-12.0 27440111
ETIM-5.0 EC002585
customs tariff number 85369010
EAN 4048879063203
Packaging unit 1


Data Regarding Article:
  • Download Product-PDF
  • Download Approval: UL Listed CA 27783_E201820_NRAQ7_ulc_z_a.pdf
  • Download Approval: UL Listed US 27783_E201820-NRAQ_ul_z_b.pdf
  • Download Construction files: DXF 27783_dxf_x_a.zip
  • Download Construction files: STP 27783_stp_x_a.zip
  • Download Document: Installation guide 27784_ina_3_14.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 07-11-20_(10) RoHS REACh exception 6c 7a 7cI_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Download Information: EU declaration of conformity 27783_13-05.15_ce_z_a.pdf
  • Download Information: MTTF Report 27783_SN29500(40°C)-BerechnungV1.4_mttf_p_a.pdf
