MVP12, 8XM12, 4POLE, PLUG. CAP SCT.
Plug. cap, field-wireable via screw terminals
| Art.No.: | 27778 |
| Weight: | 0.13 kg |
| Country of origin: | DE |
US
Call for Availability
EU
Available
Description
8-way, 4-pole
Screw plug-in terminals
Potential separation as option
with LED for digital PNP-signals 24 V DC
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Screw plug-in terminals
Potential separation as option
with LED for digital PNP-signals 24 V DC
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Technical Data
Technical Data
| Operating voltage | 24 V DC |
|---|---|
| Operating current per contact | max. 4 A |
| Locking of ports | Screw thread (M12×1 mm) |
| Connection | Screw plug-in terminals: max. 1.5 mm² (AWG 16) |
| Protection | IP67 inserted and tightened (EN 60529) |
| Housing | Plastic, flame retardant |
| Signal per port | 1 - (31-32) |
| Total current | max. 2× 8 A |
General data
| Temperature range | -20...+80 °C |
|---|---|

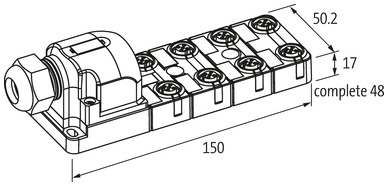

| Dimensions H×W×D | 150×50.2×17 mm |
Commercial data
| ECLASS-6.0 | 27279219 |
|---|---|
| ECLASS-6.1 | 27279219 |
| ECLASS-7.0 | 27279219 |
| ECLASS-8.0 | 27279219 |
| ECLASS-9.0 | 27440108 |
| ECLASS-10.1 | 27440111 |
| ECLASS-11.1 | 27440111 |
| ECLASS-12.0 | 27440111 |
| ETIM-5.0 | EC002585 |
| customs tariff number | 85369010 |
| EAN | 4048879063258 |
| Packaging unit | 1 |
