MASI67 I/O MODULE

4 digital inputs
Art.No.: 56405
Weight: 0.24 kg
Country of origin:  DE
US not available
EU not available
 Product Comparison
List price per piece:

Description

Digital inputs
DI4 - 0.2 A (AB) - 4× M8
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
Certificate
Certificate
Certificate

Technical Data
Total current (AS-Interface) max. 250 mA
Bus voltage (AS-Interface) 26.5...31.6 V DC
Profile (IO/ID/ID2 code) S-0.A.0
Addressing via built-in address port or master
Address range 1...62 (1...31 A or B)
General data
Mounting method DIN-rail mountable (EN 60715) or screw fixing
Temperature range -20...+60 °C (storage temperature -20...+70 °C)
Protection IP67

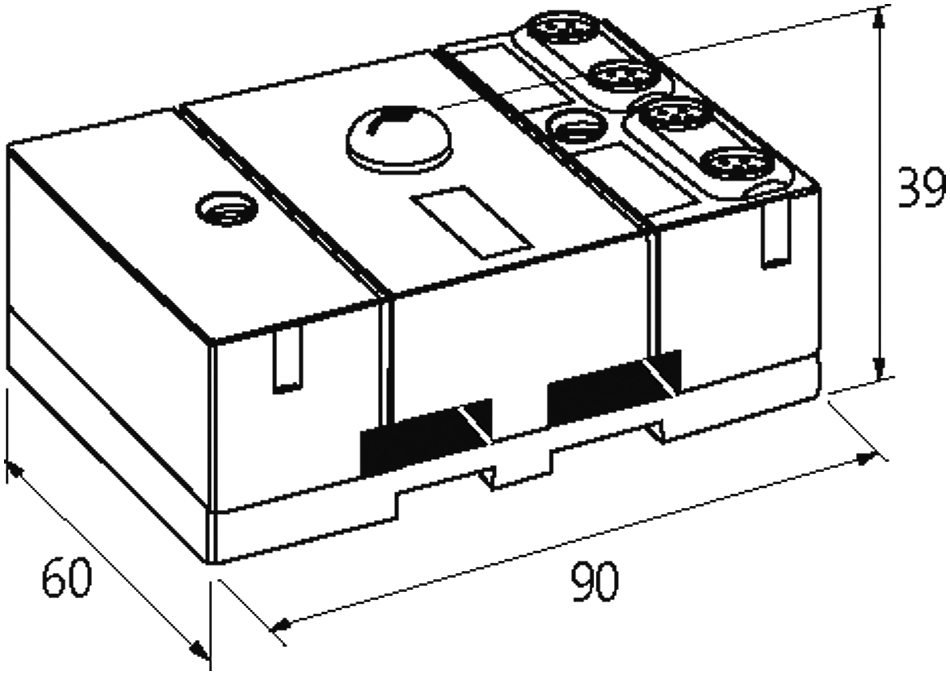

Dimensions H×W×D 94×60×39 mm
Input
Sensor supply US max. 200 mA from AS-Interface (short-circuit and overload protected)
Type for 3-wire sensors or mechanical switches, PNP
Product article number of manufacturer 56405
Diagnostic
Communication status via LED
Diagnostic via LED per module
Monitoring - no voltage yes

ECLASS-6.0 27242604
ECLASS-7.0 27242604
ECLASS-8.0 27242604
ECLASS-9.0 27242604
ETIM-5.0 EC001599
customs tariff number 85176200
EAN 4048879049061
Packaging unit 1


Data Regarding Article:
  • Download Data Sheet
  • Download Certificate: ASI  56405_52601_asi_z_c.pdf
  • Download Construction files: DXF 56405_dxf_x_a.zip
  • Download Construction files: P8 55033_p8_2_50.zip
  • Download Construction files: P8 56405_p8_2_50.zip
  • Download Construction files: STP 56405_stp_x_a.zip
  • Download Document: Installation guide 56405_ina_6_13.pdf
  • Download Document: User manual 56411_hdb_x_15.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 13-11-20_(2) RoHS REACh exception 7cI_DoC_z_c.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 05-02-23_(2) China RoHS 2 20EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity UKCA 56405_01-01.19_uk_z_a.pdf
  • Download Information: EU declaration of conformity 56405_01-01.19_ce_z_c.pdf
  • Download Information: MTTF Report 56405_SN29500(40°C)-BerechnungV1.4_mttf_p_b.pdf
