MVK-MPNIO F DI16/8 55562
Product may differ from image

MVK-MPNIO F DI16/8

MVK ProfiNet/PROFIsafe Compact module, metal,
Art.No.: 55562
Weight: 0.98 kg
Country of origin:  DE
US Call for Availability
EU Call for Availability
Find similar Product
Ask question
 Recommend Product
 Product Comparison
List price per piece:

Description

safe inputs up to cat.4/PLe (EN ISO 13849-1), up to SIL3 (IEC 61508), up to SILCL3 (IEC 62061)
FDI16/8 (IRT)
Ethernet 10/100 Mbit/s; Push Pull RJ45 Data connector
Push Pull Power connector, max. 12 A
M12, 5-pole, A-coded
Certificate
Certificate
Certificate
Certificate
Bus technologies
Bus technologies

General data
Mounting method 2-hole screw mounting
Temperature range -20...+55 °C (storage temperature -40...+70 °C)
Protection IP67

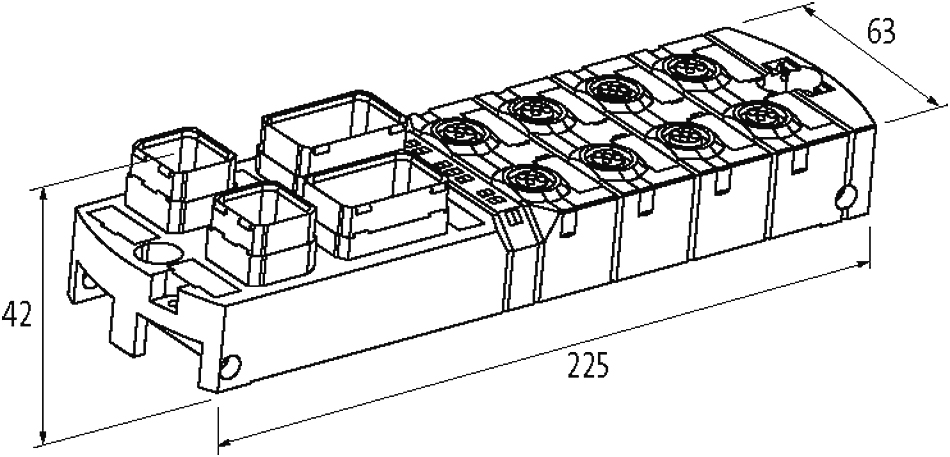

Dimensions H×W×D 44×63×225 mm
Connections
Fieldbus Ethernet 10/100 Mbit/s; Push Pull RJ45 Data connector
Sensor-system/actuator supply Push Pull Power connector, max. 12 A
I/O ports M12, 5-pole, A-coded
PROFINET
Specification V2.2, Conformance Class C (IRT)
Addressing DCP
MRP yes
Shared Device yes, for 2 controls
Safety Indicators
DC 98%
Service life 20 years
Category up to 4
PFH 1.70E-9
PL up to e
SIL CL up to 3
SIL up to 3
Product article number of manufacturer 55562
Diagnostic
Communication status via LED
Diagnostic via BUS per module and channel
Diagnostic via LED per module and channel
Actuator warning per channel via LED and BUS
Monitoring - under voltage yes
Monitoring - no voltage yes
Short-circuit and overload yes
Cross-link detection Sensor/Actuator
Wire break detection yes

ECLASS-6.0 27242604
ECLASS-6.1 27242604
ECLASS-7.0 27242604
ECLASS-8.0 27242604
ECLASS-9.0 27242604
ECLASS-10.1 27242604
ECLASS-11.1 27242604
ECLASS-12.0 27242604
ETIM-5.0 EC001599
customs tariff number 85389099
EAN 4048879454209
Packaging unit 1


Data Regarding Article:
  • Download Data Sheet
  • Download Approval: UL Listed CA 55562_E201820-NRAQ7_ulc_z_a.pdf
  • Download Approval: UL Listed US 55562_E201820-NRAQ_ul_z_a.pdf
  • Download Certificate: ProfiNet  55562_Z10713-feb16-oct18-MVK-MPNIO-F-v2.2_pn_z_c.pdf
  • Download Certificate: TÜV  55562_01-205-5408-03-22-05.04.2027_tuev_z_d.pdf
  • Download Configuration Files: GSDML 55562_MVK_F_KF0_x_13.zip
  • Download Construction files: DXF 55562_dxf_x_a.zip
  • Download Construction files: P8 55562_p8_2_60.zip
  • Download Construction files: STP 55562_stp_x_a.zip
  • Download Document: Installation guide 55562_ina_x_19.zip
  • Download Document: User manual 55563_hdb_x_24.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 07-11-20_(10) RoHS REACh exception 6c 7a 7cI_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Download Information: Certificate of conformity UKCA 55562_07-04.22_uk_z_c.pdf
  • Download Information: EU declaration of conformity 55562_07-04.22_ce_z_e.pdf
  • Download Information: Safety Codes 55557_SISTEMA_TB9_x_22.zip
  • Download Software: Firmwareupdatetool 10500955_AutoUpdateX_TB3_x_31.zip
  • Download Software: Safety-Configurator 10500984_MVKSafety Configurator_TB1_x_41.zip
