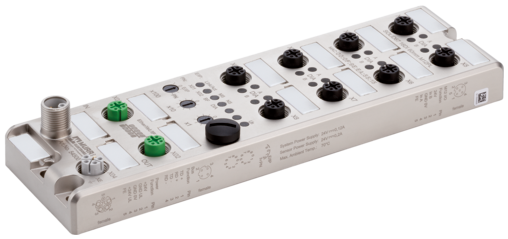

SOLID67 IOL8 60mm M12L 5P 54504
Product may differ from image

SOLID67 IOL8 60mm M12L 5P

SOLID67 Multiprotocol Profinet or EthernetIP
Art.No.: 54504
Weight: 0.495 kg
Country of origin:  DE
US not available
EU not available
Find similar Product
Ask question
 Recommend Product
 Product Comparison
List price per piece:

Description

IOL8
M12 Power, 5-pole, L-coded
60 mm
Housing fully potted.
Connection cables are in the online shop under "Connection Technology".
Certificate
Certificate
Certificate
Bus technologies
Bus technologies
Bus technologies

General data
Mounting method 2-hole screw mounting
Temperature range -20...+70 °C
Protection IP67
Dimensions H×W×D 43.1×60×200 mm
Output
Actuator supply UA 24 V DC (EN 61131-2), max. 9 A
Switching current per output max. 0.5 A (PIN 4, X1...X8); 2 A (PIN 2/5 Uaux, X5...X8), short-circuit and overload protected
Input
Sensor supply US 24 V DC (EN 61131-2), max. 500 mA (M12 female), short-circuit and overload protected
Type for 3-wire sensors or mechanical switches, PNP, IO-Link Devices
IO-Link
Specification IO-Link Master V1.1
Port Class 4× A (port X1...X4), 4× B (port X5...X8, galvanically separated, max. 2 A per port)
IO-Link 8× Master
Transfer parameters 32 Input byte and/or 32 Output byte (per IO-Link port)
Operating modes COM1; COM2; COM3 (automatic)
Parameterization
PIN 4 Input (port X1...X8); Output (port X1...X8); IO-Link Master (port X1...X8)
PIN 2 Input (port X1...X4); Output (port X5...X8)
Connections
Fieldbus Ethernet 10/100 Mbit/s; M12, D-coded
Sensor-system/actuator supply M12 Power, 5-pole, L-coded
I/O ports M12, 5-pole, A-coded
PROFINET
Specification V2.3, Conformance Class C (IRT)
Addressing DCP
PROFINET Netload Class II
MRP yes
Shared Device yes, for 2 controls
EtherNet/IP
Addressing DHCP, BOOTP or IP address by rotary switch
DLR (Device Level Ring) yes
Product article number of manufacturer 54504
Diagnostic
Communication status via LED
Diagnostic via BUS per module and channel
Diagnostic via LED per module and channel
Actuator warning via LED and BUS
Monitoring - under voltage yes
Monitoring - no voltage yes
Short-circuit and overload yes
Cable break per port

ECLASS-6.0 27242604
ECLASS-6.1 27242604
ECLASS-7.0 27242604
ECLASS-8.0 27242604
ECLASS-9.0 27242604
ECLASS-10.1 27242604
ECLASS-11.1 27242604
ECLASS-12.0 27242604
ETIM-5.0 EC001599
customs tariff number 85389099
EAN 4048879727686
Packaging unit 1


Data Regarding Article:
  • Download Data Sheet
  • Download Approval: UL Listed CA 54504_E201820-NRAQ7_ulc_z_a.pdf
  • Download Approval: UL Listed US 54504_E201820-NRAQ_ul_z_a.pdf
  • Download Certificate: ProfiNet  54504_Z12128-12.08.2019-v2.32_pn_z_a.pdf
  • Download Configuration Files: EDS 54504_SOLID67_KF5_x_11.zip
  • Download Configuration Files: GSDML 54501_SOLID67_KF0_x_11.zip
  • Download Construction files: DXF 54504_dxf_x_a.7z
  • Download Construction files: P8 54504_p8_2_50.zip
  • Download Construction files: STP 54504_stp_d_a.7z
  • Download Document: Installation guide 54504_ina_x_12.zip
  • Download Document: User manual 54504_hdb_x_15.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 10-11-20_(1) RoHS REACh exception 6c_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity UKCA 54504_11-05.18_uk_z_a.pdf
  • Download Information: EU declaration of conformity 54504_11-05.18_ce_z_a.pdf
  • Download Information: MTTF Report 54504_Telcordia(20°C,60°C)-Berechnung_mttf_p_a.pdf
  • Download Software: IO-Link-Device-Tool 10501019_IO-Link-Device-Tool_TRB_x_48.zip
