E-Stop 30 2NC M12(4)
Emergency-Stop
| Art.No.: | 69100 |
| Weight: | 0.043 kg |
| Country of origin: | DE |
US
Call for Availability
EU
Available
Description

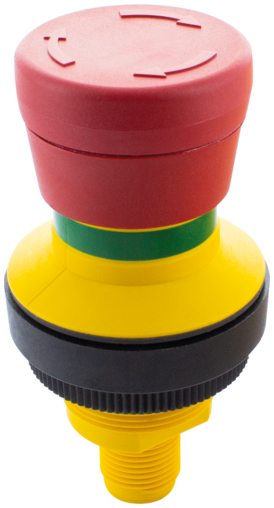

E-Stop 30 2NC M12(4)
Emergency-Stop
Mounting hole 30,3 mm
Connection M12 (4-pin)
Emergency-Stop
Mounting hole 30,3 mm
Connection M12 (4-pin)
Technical Data
Mechanical protection
| UL Enclosure Type Rating - front | type 4X |
|---|---|
| Mechanical endurance | 50000 |
| Mechanical endurance B10 | 65000 |
| Operating life B10d | 84500 Cycles |
Electrical data
| Short-circuit current | 1000 A |
|---|---|
| Short circuit protective device (SCPD) | fuse 250 V / 0.1 A / 1.5 kA gG quick |
| Switching current | 1...100 mA |
| Rated voltage UL 60947 | ≤ 30 V AC/DC |
| Switching voltage | 1...35 V |
| Power rating (voltage dependent) | 0,25 W |
| Rated surge voltage | 2500 V |
| Rated insulation voltage | 250 V |
Ambient characteristics
| Salt-spray resistance | IEC 60068-2-11 |
|---|---|
| Installation height max. ASL | ≤ 2000 m |
| Relative humidity | ≤ 93% @ 40 °C |
| storage temperature | -40...90 °C |
| operating temperature | -40...85 °C |
Mechanical data
| Grid min. | 35 mm |
|---|---|
| Mounting hole | 30,3 mm |
| Mounting depth | 36,3 mm |
| Dimensions H×W×D | 30 x 34,5 x 69,7 mm |
| Terminal | M12, 4-pole, A-coded |
| Fixing | Threaded ring |
| Contact material | Gold |
| Contact function | 2 Ö |
| Housing | Plastic |
| Product article number of manufacturer | 69100 |
|---|
Supply
| Rated operating voltage (AC-15) | 35 V |
|---|---|
| Rated operating voltage (DC-13) | 35 V |
Electrical
| Degree of protection front (EN IEC 60529) | IP65 |
|---|---|
| Degree of protection back (EN IEC 60529) | IP65, IP67 |
Mechanical data
| Can be illuminated | no |
|---|---|
| Shape collar | round |
| Color | red |
| Color collar | yellow |
| Actuating function | latching |
Mechanical data
| Installation height | 33,4 mm |
|---|
Commercial data
| ECLASS-6.1 | 27371244 |
|---|---|
| ECLASS-7.0 | 27371244 |
| ECLASS-8.0 | 27371244 |
| ECLASS-9.0 | 27371244 |
| ECLASS-10.1 | 27371244 |
| ECLASS-11.1 | 27371244 |
| ECLASS-12.0 | 27371244 |
| customs tariff number | 85365080 |
| EAN | 4065909019306 |
| Packaging unit | 1 |
