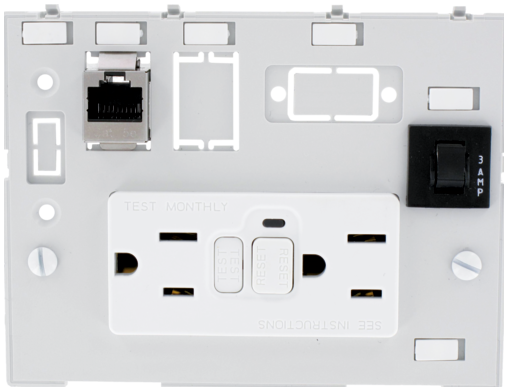

Modlink MSDD-set: Frame 4000-68523-0000001, 4000-68523-4110001
Product may differ from image

Modlink MSDD-set: Frame 4000-68523-0000001,

insert 4000-68000-4110000
Art.No.: 4000-68523-4110001
Weight: 0.524 kg
Country of origin:  US
US Call for Availability
EU Call for Availability
Find similar Product
Ask question
 Recommend Product
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description

with touch protection
Certificate
Certificate

General data
Dimensions H×W×D 88×116×72 mm
Frame
suitable for mounting with wall thickness 1...5 mm
Protection IP65
Temperature range -30...+70 °C (storage temperature -30...+80 °C)
Housing Frame: plastic PA black, cap: plastic ABS metallic
RJ45
Operating current (UL Rating) max. 175 mA
Locking of ports Snap In
Connection front side RJ45
Connection rear side RJ45
Operating voltage (UL Rating) max. 30 V AC/42.4 V DC
Specification CAT5e, Class D, 100 MHz, (EN 50173-1)
Fuse
Operating voltage 250 V AC/32 V DC
Continuous load 3 A
USA
Operating current 15 A
Operating voltage 125 V AC
No. of poles 2 + PE
Connection Screw terminals: max. 2× 6 mm² (AWG 10)

ECLASS-6.0 27144001
ECLASS-6.1 27189217
ECLASS-7.0 27189217
ECLASS-8.0 27189217
ECLASS-9.0 27189217
ECLASS-10.1 27182806
ECLASS-11.1 27182806
ECLASS-12.0 27182806
ETIM-5.0 EC002625
customs tariff number 85366990
EAN 4048879477963
Packaging unit 1


Data Regarding Article:
  • Download Product-PDF
  • Download Approval: UL Listed CA 4000-68523-0000001_E505880_FTTA7_ulc_z_a.pdf
  • Download Approval: UL Listed CA 4000-68523-4110001_E505880-FTTA7_ulc_z_b.pdf
  • Download Approval: UL Listed US 4000-68523-4110001_E505880-FTTA_ul_z_b.pdf
  • Download Approval: UL Listed US 4000-68523-0000001_E505880_FTTA_ul_z_a.pdf
  • Download Approval: UL Registered CA 4000-68523-0000001_E352050-NITW8_urc_z_b.pdf
  • Download Approval: UL Registered US 4000-68523-0000001_E352050-NITW2_ur_z_b.pdf
  • Download Construction files: STP 4000-68000-4110000_stp_x_d.zip
  • Download Construction files: STP 4000-68523-0000001_stp_x_b.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 07-02-23_(5) China RoHS 2 50EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 10-11-20_(1) RoHS REACh exception 6c_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Download Information: Certificate of conformity UKCA 4000-68523-0000001_15-09.21_uk_z_a.pdf
  • Download Information: EU declaration of conformity 4000-68523-0000001_04-07.13_ce_z_a.pdf
