B16 female 40-pole, crimp t., 250 V, 10 A
| Art.No.: | 70MH-EB040-FC01010 |
| Alternative product: | 70MH-EB032-FC03020 |
| Weight: | 0.062 kg |
| Country of origin: | CZ |
US
Call for Availability
EU
Available
Description
B16
Female
40-pole
Crimp
Technical data will be only guaranteed with Murrelektronik components.
Female
40-pole
Crimp
Technical data will be only guaranteed with Murrelektronik components.
Technical Data
Technical Data
| Operating voltage | 250 V AC/DC |
|---|---|
| Rated surge voltage | 4.0 kV |
| Operating current | 10 A |
| No. of poles | 40 + PE |
| Material group | IIIa |
| Mating cycles | min. 500 |
| Connection | Crimp |
| Connection cross section | 0.14...2.5 mm² (AWG 26...13) |
| Holding force | > 70 N |
| Insertion and withdrawal force | < 150 N |
| Isolation resistance | ≥ 10^8 Ω |
| Contact resistance | ≤ 5 mΩ |
| Over voltage category | III |
| Wire-Ø incl. isolation | max. 4.3 mm |
General data
| Material contact | Brass |
|---|---|
| Material contact surface | Ag |
| Pollution Degree | 3 |
| Temperature range | -40...+125 °C |
| Material contact carrier | PC GF |
| Flammability class | V-0 (acc. to UL 94) |
| Size | B16 |
| Type | Female |
| Climatic category | 40/125/21 |
| Dimensions H×W×D | 36.3×34×84 mm |
Cable

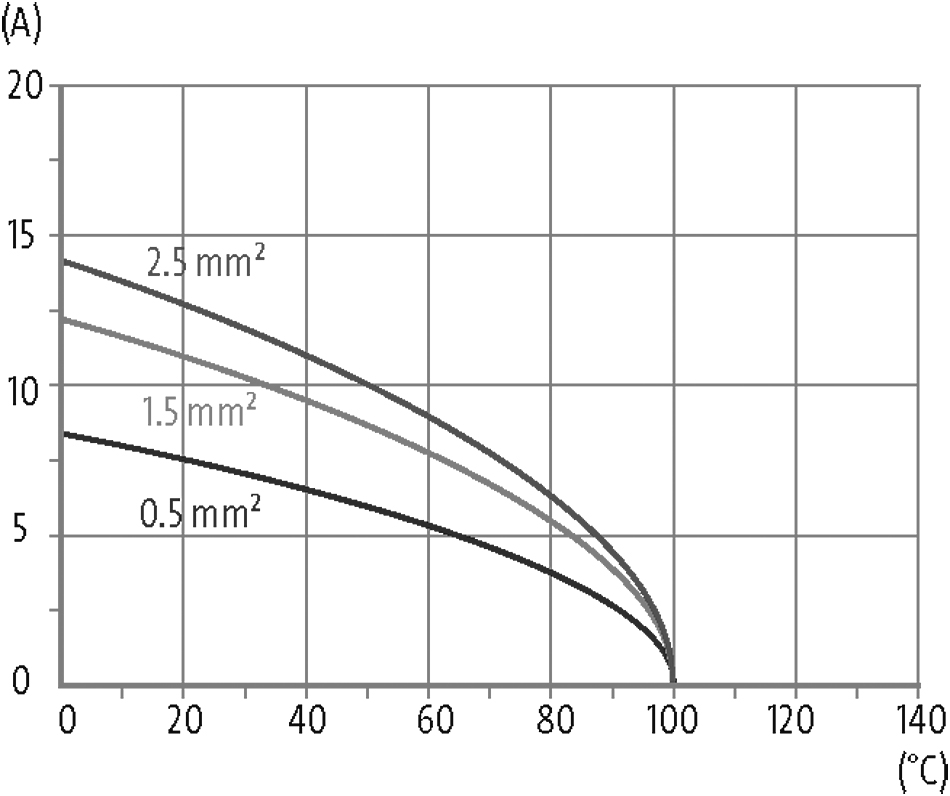

| Current load capacity | see derating curve |
|---|
Commercial data
| ECLASS-6.0 | 27143424 |
|---|---|
| ECLASS-7.0 | 27440209 |
| ECLASS-8.0 | 27440209 |
| ECLASS-9.0 | 27440209 |
| ECLASS-10.1 | 27440205 |
| ECLASS-11.1 | 27440205 |
| ECLASS-12.0 | 27440205 |
| ETIM-5.0 | EC000438 |
| customs tariff number | 85389099 |
| EAN | 4048879638715 |
| Packaging unit | 1 |
