B16 female 6+2-pole, Push-in, 800/500 V, 16 A

Art.No.: 70MH-EB6U2-FP05020
Weight: 0.022 kg
Country of origin:  CN
US Call for Availability
EU Available
 Product Comparison
List price per piece:
Download to Easy-Import-Export


Push-In terminals
Technical data will be only guaranteed with Murrelektronik components.
Please use wire end ferrule.

Technical Data
Operating voltage 830/500 V AC/DC
Rated surge voltage 8.0/6.0 kV
Operating current 16 A
No. of poles 6 + 2 + PE
Mating cycles min. 500
Connection Push-In terminals
Connection cross section 0.14...2.5 mm² (AWG 26...13)
Stripping length 8...10 mm
Over voltage category III
Current load capacity see derating curve
General data
Material contact Brass
Material contact surface Ag
Pollution Degree 3
Temperature range -40...+125 °C
Material contact carrier PA
Flammability class V-0 (acc. to UL 94)
Size B16
Type Female

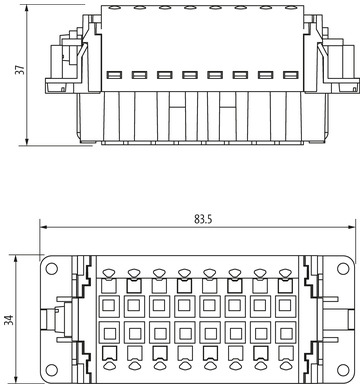

Dimensions H×W×D 37×34×83.5 mm

ECLASS-6.0 27143424
ECLASS-6.1 27261204
ECLASS-7.0 27440205
ECLASS-8.0 27440205
ECLASS-9.0 27440205
ECLASS-10.1 27440205
ECLASS-11.1 27440205
ECLASS-12.0 27440205
ETIM-5.0 EC000438

customs tariff number 85389099
GTIN 4048879665056
Packaging unit 1

Data Regarding Article:
  • Download Product-PDF
  • Download Approval: CSA CA 70MH-EB6U2-FP05020_269367_C6233-01_csa_z_a.pdf
  • Download Approval: UL Registered CA 70MH-EB6U2-FP05020_E224242-ECBT8_urc_z_b.pdf
  • Download Approval: UL Registered US 70MH-EB6U2-FP05020_E224242-ECBT2_ur_z_b.pdf
  • Download Construction files: DXF
  • Download Construction files: STP
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
