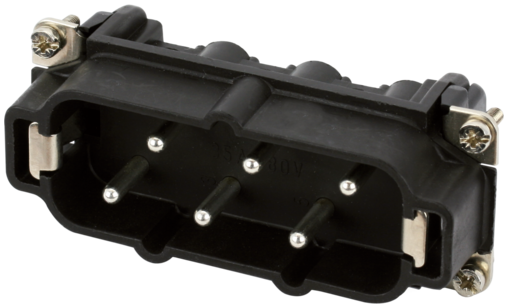

B16 male 6-pole, screw t., 400 V, 42 A
| Art.No.: | 70MH-ES006-FS02030 |
| Weight: | 0.09 kg |
| Country of origin: | CZ |
US
Call for Availability
EU
Available
Description
B16
Male
6-pole
Screw terminal
Technical data will be only guaranteed with Murrelektronik components.
Male
6-pole
Screw terminal
Technical data will be only guaranteed with Murrelektronik components.
Technical Data
Technical Data
| Operating voltage | 400 V AC/DC |
|---|---|
| Rated surge voltage | 6.0 kV |
| Operating current | 42 A |
| No. of poles | 6 + PE |
| Material group | II |
| Mating cycles | min. 500 |
| Connection | Screw terminal |
| Connection cross section | 0.5...6 mm² (AWG 20...9) |
| Holding force | > 500 N |
| Tightening torque (clamp screw) | min. 0.8 Nm |
| Insertion and withdrawal force | < 250 N |
| Stripping length | 12 mm |
| Isolation resistance | ≥ 10^8 Ω |
| Contact resistance | ≤ 1 mΩ |
| Over voltage category | III |
| Wire-Ø incl. isolation | max. 6.4 mm |
General data
| Material contact | Brass |
|---|---|
| Material contact surface | Ag |
| Pollution Degree | 3 |
| Temperature range | -40...+125 °C |
| Material contact carrier | PA 66 GF |
| Flammability class | V-0 (acc. to UL 94) |
| Size | B16 |
| Type | Male |
| Climatic category | 40/125/21 |

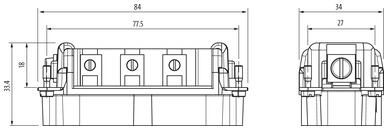

| Dimensions H×W×D | 33.4×34×84 mm |
Cable
| Current load capacity | see derating curve |
|---|
Commercial data
| ECLASS-6.0 | 27143424 |
|---|---|
| ECLASS-7.0 | 27440209 |
| ECLASS-8.0 | 27440209 |
| ECLASS-9.0 | 27440209 |
| ECLASS-10.1 | 27440205 |
| ECLASS-11.1 | 27440205 |
| ECLASS-12.0 | 27440205 |
| ETIM-5.0 | EC000438 |
| customs tariff number | 85389099 |
| EAN | 4048879638777 |
| Packaging unit | 1 |
