B10 frame (male) for 3 modules  70MH-RE03S-0000000
Product may differ from image

B10 frame (male) for 3 modules

A…C
Art.No.: 70MH-RE03S-0000000
Alternative product:    70MH-RF04S-0000000
Weight: 0.06 kg
Country of origin:  CZ
US Available
EU Available
 Product Comparison
List price per piece:

Description

B10
Frame
Male
for 3 modules
Technical data will be only guaranteed with Murrelektronik components.

Technical Data
No. of poles 2 PE
Connection Screw terminal
Connection cross section 1...6 mm² (AWG 18...10)
Mating cycles (frame) min. 500
Insertion and withdrawal force < 60 N
Mating cycles (safety element) min. 20
Holding force (PE contact) 250 N
Contact resistance ≤ 5 mΩ
Holding force (modules) ≥ 300 N (when stuck)/≥ 600 N (when pulling)
General data
Material (contact) Brass
Material (contact surface) Ni
Temperature range -40...+125 °C
No. of module positions 3
Flammability class V-0 (acc. to UL 94)
Material (safety element) PC GF
Size B10
Material (frame) Zinc die casting, nickel-plated
Climatic category 40/125/10
Frame type Male

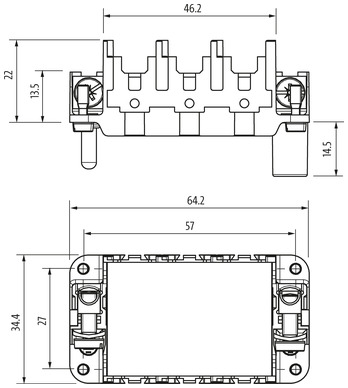

Dimensions H×W×D 36.5×34.4×64.2 mm
Product article number of manufacturer 70MH-RE03S-0000000

ECLASS-6.0 27143424
ECLASS-7.0 27440209
ECLASS-8.0 27440209
ECLASS-9.0 27440209
ECLASS-10.1 27440206
ECLASS-11.1 27440206
ECLASS-12.0 27440206
ETIM-5.0 EC002312
customs tariff number 85389099
EAN 4048879641760
Packaging unit 1
