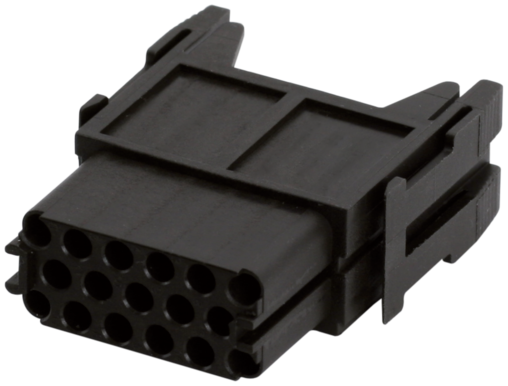

Female module, 17-pole, crimp t.  70MH-MAC1C-0170201
Product may differ from image

Female module, 17-pole, crimp t.

160 V, 10 A
Art.No.: 70MH-MAC1C-0170201
Weight: 0.01 kg
Country of origin:  CZ
US Call for Availability
EU Available
 Product Comparison
List price per piece:
Download to Easy-Import-Export


Technical data will be only guaranteed with Murrelektronik components.

Technical Data
Operating voltage 160 V AC/DC
Rated surge voltage 2.5 kV
Operating current 10 A
No. of poles 17
Material group I
Mating cycles min. 500
Connection Crimp
Connection cross section 0.14...2.5 mm² (AWG 26...13)
Holding force (contacts) ≥ 70 N
Insertion and withdrawal force < 140 N
Isolation resistance ≥ 10^8 Ω
Contact resistance ≤ 5 mΩ
Over voltage category III
Wire-Ø incl. isolation max. 3.7 mm
Holding force (modules) ≥ 150 N
Current load capacity see derating curve
General data
Material contact Brass
Material contact surface Ag Au
Pollution Degree 3
Temperature range -40...+125 °C
No. of module positions 1
Flammability class V-0 (acc. to UL 94)
Type Female
Climatic category 40/125/10
Material module PA GF
Dimensions H×W×D 44×14.5×34.4 mm

ECLASS-6.0 27143424
ECLASS-6.1 27261204
ECLASS-7.0 27440204
ECLASS-8.0 27440204
ECLASS-9.0 27440217
ECLASS-10.1 27440217
ECLASS-11.1 27440217
ECLASS-12.0 27440217
ETIM-5.0 EC000438

customs tariff number 85389099
GTIN 4048879641654
Packaging unit 5

Data Regarding Article:
  • Download Product-PDF
  • Download Approval: UL Registered CA 70MH-MAC1C-0170201_E224242-ECBT8_urc_z_b.pdf
  • Download Approval: UL Registered US 70MH-MAC1C-0170201_E224242-ECBT2_ur_z_b.pdf
  • Download Construction files: DXF
  • Download Construction files: STP
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
