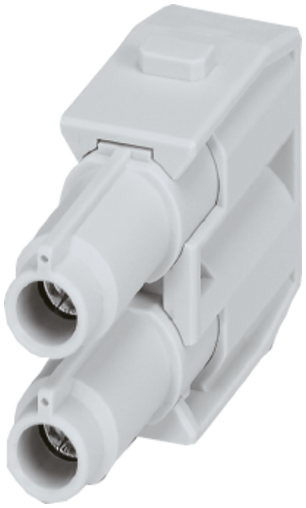

Female module, 2-pole, axial screw t.  70MH-MAC1A-0020706
Product may differ from image

Female module, 2-pole, axial screw t.

1000 V, 70 A

Art.No.: 70MH-MAC1A-0020706
Weight: 0.032 kg
Country of origin:  PL
US Call for Availability
EU Available
List price per piece:
Download to the Data Cart Download to Easy-Import-Export

Description

Female
2-pole
Axial screw connection
Technical data will be only guaranteed with Murrelektronik components.
Axial screw connection only for flexible wires
The clip 70MH-ZZ100-0000000 is needed (2×)
Certificate
Certificate

Electrical data | Supply
Operating voltage AC 1000 V
Operating voltage DC 1000 V
Operating current 70 A
Installation
Connection cross section min. 6 mm²
Connection cross section max. 25 mm²
AWG number min. 9
AWG number max. 3
Installation | Connection
Stripping length min. 11 mm
Stripping length max. 12,5 mm
Wire insulation diameter min. 8,9 mm
Connection information Axial screw connection
Tightening torque (6 mm²); 3 Nm (10...25 mm²)
Tightening torque 2 Nm
Gender female
Width across flats SW2.5
Mating cycles min. 500
Installation | Pin assignment
No. of poles 2
Device protection | Electrical
Pollution Degree 3
Rated surge voltage 8 kV
Overvoltage category (EN 60950-1) III
Mechanical data | Material data
Coating contact silver-plated
Combustibility class (UL94) V-0
Material housing PC
Material contact Brass

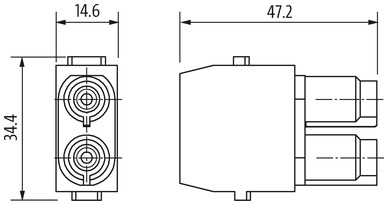

Mechanical data | Mounting data
Number of module slots 1
Height 39,4 mm
Width 28,8 mm
Depth 13,6 mm
Environmental characteristics | Climatic
Operating temperature min. -40 °C
Operating temperature max. 125 °C

ECLASS-6.0 27143424
ECLASS-6.1 27261204
ECLASS-7.0 27440204
ECLASS-8.0 27440204
ECLASS-9.0 27440217
ECLASS-10.1 27440217
ECLASS-11.1 27440217
ECLASS-12.0 27440217
ETIM-5.0 EC000438
customs tariff number 85366990
GTIN 4048879663946
Packaging unit 1


Data Regarding Article:
  • Product-PDF
  • Approval: CSA CA 70MH-MAC1A-0020706_269367_C6233-01_csa_z_b.pdf (B)
  • Approval: UL Registered US 70MH-MAC1A-0020706_E224242-ECBT2_ur_z_b.pdf (B)
  • Construction files: DXF 70MH-MAC1A-0020706_dxf_x_a.zip (A)
  • Construction files: STP 70MH-MAC1A-0020706_stp_x_a.zip (A)
  • Information: Certificate of conformity Murrelektronik GmbH 17-12-23_(1) RoHS REACh exception 6c_DoC_z_a.pdf (04)
  • Information: Certificate of conformity Murrelektronik GmbH 23-12-23_(1) California Prop65 No Warning_DoC_z_a.pdf (01)
  • Information: Certificate of conformity Murrelektronik GmbH 13-12-23_(5) China RoHS 2 50EEP_DoC_z_a.pdf (01)
