Male module, 2-pole, axial screw t.
Product may differ from image

Male module, 2-pole, axial screw t.

1000 V, 70 A
Art.No.: 70MH-MAB1A-0020706
Weight: 0.032 kg
Country of origin:  CZ
US Call for Availability
EU Available
 Product Comparison
List price per piece:

Description

Male
2-pole
Axial screw connection
Technical data will be only guaranteed with Murrelektronik components.
Axial screw connection only for flexible wires
The clip 70MH-ZZ100-0000000 is needed (2×)
Approvals
Approvals

Technical Data
Operating voltage 1000 V AC/DC
Rated surge voltage 8.0 kV
Operating current 70 A
No. of poles 2
Mating cycles min. 500
Connection Axial screw connection, hexagonal socket (SW2.5)
Connection cross section 6...25 mm² (AWG 9...3)
Stripping length 11 mm (6...16 mm²); 12.5 mm (25 mm²)
Tightening torque 2 Nm (6 mm²); 3 Nm (10...25 mm²)
Over voltage category III
Wire-Ø incl. isolation max. 8.9 mm
General data
Material (contact) Brass
Material (contact surface) Ag
Pollution Degree 3
Temperature range -40...+125 °C
No. of module positions 1
Flammability class V-0 (acc. to UL 94)
Type Male
Material (module) PC

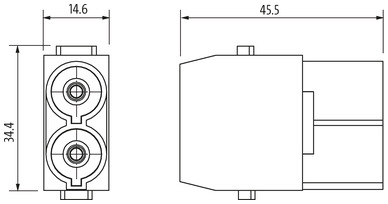

Dimensions H×W×D 39.4×28.8×13.6 mm

customs tariff number 85366990
EAN 4048879663953
eClass 27143424
Packaging unit 1.000


Data Regarding Article:
  • Download Data Sheet
  • Download Approval: CSA CA 70MH-MAB1A-0020706_269367_C6233-01_csa_z_b.pdf
  • Download Approval: UL Registered US 70MH-MAB1A-0020706_E224242-ECBT2_ur_z_b.pdf
  • Download Construction files: DXF 70MH-MAB1A-0020706_dxf_x_a.zip
  • Download Construction files: STP 70MH-MAB1A-0020706_stp_x_a.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10.21_(1) California Prop65 No Warning_DoC_z_b.pdf
