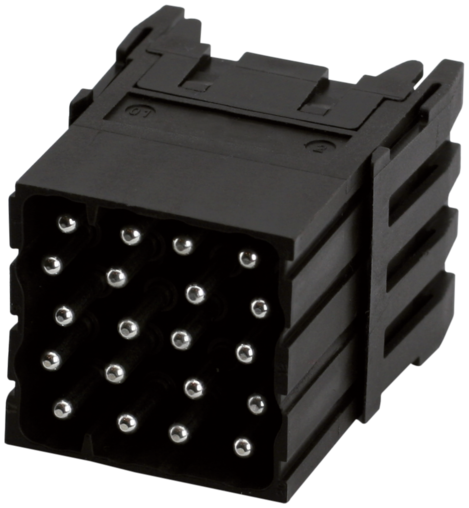

Male module, 20-pole, crimp t.
500 V, 16 A
| Art.No.: | 70MH-MAB1C-0200502 |
| Weight: | 0.094 kg |
| Country of origin: | CZ |
US
Call for Availability
EU
Available
Description
Male
20-pole
Crimp
Technical data will be only guaranteed with Murrelektronik components.
20-pole
Crimp
Technical data will be only guaranteed with Murrelektronik components.
Technical Data
Technical Data
| Operating voltage | 500 V AC/DC |
|---|---|
| Rated surge voltage | 6.0 kV |
| Operating current | 16 A |
| No. of poles | 20 |
| Material group | I |
| Mating cycles | min. 500 |
| Connection | Crimp |
| Connection cross section | 0.5...4 mm² (AWG 20...11) |
| Holding force (contacts) | ≥ 130 N |
| Insertion and withdrawal force | < 500 N |
| Isolation resistance | ≥ 10^8 Ω |
| Contact resistance | ≤ 5 mΩ |
| Over voltage category | III |
| Wire-Ø incl. isolation | max. 4.6 mm |
| Holding force (modules) | ≥ 550 N |
General data
| Material contact | Brass |
|---|---|
| Material contact surface | Ag Au |
| Pollution Degree | 3 |
| Temperature range | -40...+125 °C |
| No. of module positions | 2 |
| Flammability class | V-0 (acc. to UL 94) |
| Type | Male |
| Climatic category | 40/125/10 |
| Material module | PA GF |

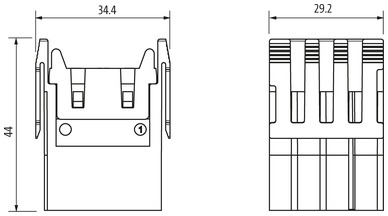

| Dimensions H×W×D | 44×29.2×34.4 mm |
Cable
| Current load capacity | see derating curve |
|---|
Commercial data
| ECLASS-6.0 | 27143424 |
|---|---|
| ECLASS-7.0 | 27440209 |
| ECLASS-8.0 | 27440209 |
| ECLASS-9.0 | 27440209 |
| ECLASS-10.1 | 27440217 |
| ECLASS-11.1 | 27440217 |
| ECLASS-12.0 | 27440217 |
| ETIM-5.0 | EC000438 |
| customs tariff number | 85389099 |
| EAN | 4048879641586 |
| Packaging unit | 5 |
