Male module, 5-pole, Push-in
400 V, 16 A
| Art.No.: | 70MH-MAB1P-0050402 |
| Weight: | 0.015 kg |
| Country of origin: | CZ |
US
Available
EU
Available
Description
Male
5-pole
Push-In terminals
Technical data will be only guaranteed with Murrelektronik components.
Please use wire end ferrule.
The clip 70MH-ZZ100-0000000 is needed (2×)
5-pole
Push-In terminals
Technical data will be only guaranteed with Murrelektronik components.
Please use wire end ferrule.
The clip 70MH-ZZ100-0000000 is needed (2×)
Technical Data
Technical Data
| Operating voltage | 400 V AC/DC |
|---|---|
| Rated surge voltage | 6.0 kV |
| Operating current | 16 A |
| No. of poles | 5 |
| Mating cycles | min. 500 |
| Connection | Push-In terminals |
| Connection cross section | 0.14...2.5 mm² (AWG 26...14) |
| Over voltage category | III |
General data
| Material contact | Brass |
|---|---|
| Material contact surface | Ag |
| Pollution Degree | 3 |
| Temperature range | -40...+125 °C |
| No. of module positions | 1 |
| Flammability class | V-0 (acc. to UL 94) |
| Type | Male |
| Material module | PC |

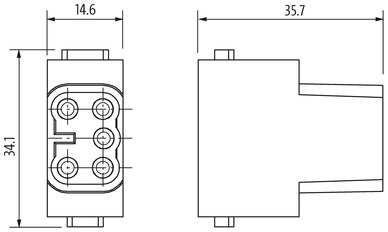

| Dimensions H×W×D | 34.5×34.1×14.6 mm |
Commercial data
| ECLASS-6.0 | 27143424 |
|---|---|
| ECLASS-7.0 | 27440209 |
| ECLASS-8.0 | 27440209 |
| ECLASS-9.0 | 27440209 |
| ECLASS-10.1 | 27440217 |
| ECLASS-11.1 | 27440217 |
| ECLASS-12.0 | 27440217 |
| ETIM-5.0 | EC000438 |
| customs tariff number | 85366990 |
| EAN | 4048879664004 |
| Packaging unit | 5 |
