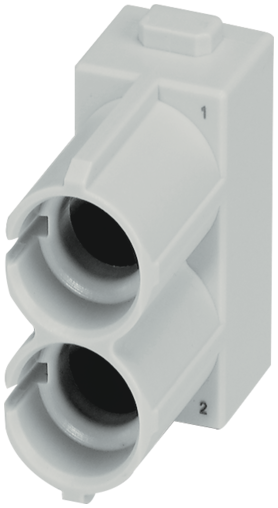

Pneumatic module - female & male, 2-pole
| Art.No.: | 70MH-MAP10-0020000 |
| Weight: | 0.006 kg |
| Country of origin: | CZ |
US
Call for Availability
EU
Available
Description
Pneumatic
Male/female
2-pole
Internal hose Ø 6 mm
Technical data will be only guaranteed with Murrelektronik components.
The clip 70MH-ZZ100-0000000 is needed (2×)
Male/female
2-pole
Internal hose Ø 6 mm
Technical data will be only guaranteed with Murrelektronik components.
The clip 70MH-ZZ100-0000000 is needed (2×)
Technical Data
Technical Data
| No. of poles | 2 |
|---|---|
| Mating cycles | min. 500 |
General data
| Pollution Degree | 3 |
|---|---|
| Temperature range | -40...+80 °C |
| No. of module positions | 1 |
| Flammability class | V-0 (acc. to UL 94) |
| Type | (male/female) |
| Material module | PC |
| Dimensions H×W×D | 27.2×34.1×14.6 mm |
Commercial data
| ECLASS-6.0 | 27440209 |
|---|---|
| ECLASS-7.0 | 27440209 |
| ECLASS-8.0 | 27440209 |
| ECLASS-9.0 | 27440209 |
| ECLASS-10.1 | 27440204 |
| ECLASS-11.1 | 27440204 |
| ECLASS-12.0 | 27440204 |
| ETIM-5.0 | EC000438 |
| customs tariff number | 85389099 |
| EAN | 4048879664134 |
| Packaging unit | 5 |
