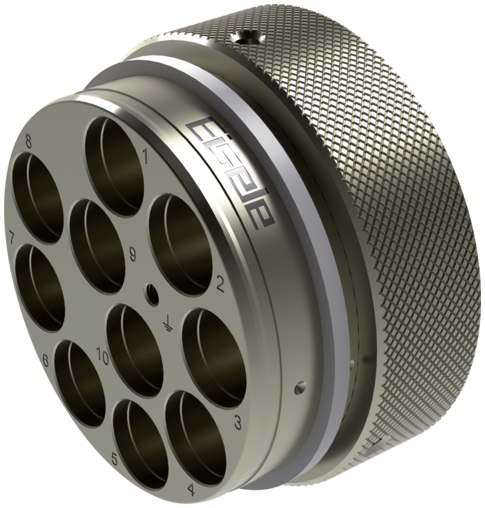

MODL. VARIO 10-way coupling housing type B
nickel plated aluminum
| Art.No.: | M1850-100602 |
| Alternative product: | M1851-100602 |
| Weight: | 0.257 kg |
| Country of origin: | DE |
US
Call for Availability
EU
Call for Availability
Description
Mobile housing (round)
Aluminium
10-way
Aluminium
10-way
Technical Data
Technical Data
| Locking of ports | screw fixing |
|---|---|
| Protection | IP65, IP66K, IP67, IP68, IP69K inserted and tightened (EN 60529) |
| Material | Aluminum die-cast (powder-coated) |
General data
| Temperature range | -20...+120 °C |
|---|---|
| Pressure range | -0.8...16 bar |
Commercial data
| ECLASS-6.0 | 27260702 |
|---|---|
| ECLASS-7.0 | 27440102 |
| ECLASS-8.0 | 27440102 |
| ECLASS-9.0 | 27440102 |
| ECLASS-10.1 | 27440312 |
| ECLASS-11.1 | 27440312 |
| ECLASS-12.0 | 27440312 |
| ETIM-5.0 | EC002641 |
| customs tariff number | 85389099 |
| EAN | 4048879573061 |
| Packaging unit | 1 |
