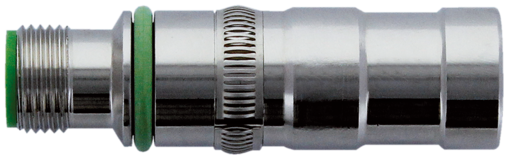

MODL.VARIO insert for fixed housing type B
6-pole M12, male, shielded
| Art.No.: | 7000-46114-0000000 |
| Weight: | 0.035 kg |
| Country of origin: | DE |
US
Call for Availability
EU
Call for Availability
Description
Insert - stationary housing
Male straight – female straight
M12, 6-pole
A-coded
Good chemical and oil resistance (oil resistance does not apply to use with PVC cable)
The resistance to aggressive media should be individually tested for your application. Further details on request.
Male straight – female straight
M12, 6-pole
A-coded
Good chemical and oil resistance (oil resistance does not apply to use with PVC cable)
The resistance to aggressive media should be individually tested for your application. Further details on request.
Technical Data
Technical Data
| Operating voltage | max. 30 V AC/DC |
|---|---|
| Rated surge voltage | 0.8 kV |
| Operating current per contact | max. 4 A |
| No. of poles | 6 |
| Material group | IEC 60664-1, category I |
| Coding | A-coded |
| LED display | no |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Material | Brass, nickel plated |
| suitable for corrugated tube (internal Ø) | without |
| Compression gland | M12 |
General data
| Material gasket | FKM |
|---|---|
| Pollution Degree | 3 |
| Temperature range | -25...+85 °C |
classifications
| ECLASS-6.0 | 27260702 |
|---|---|
| ECLASS-7.0 | 27440102 |
| ECLASS-8.0 | 27440102 |
| ECLASS-9.0 | 27440102 |
| ECLASS-10.1 | 27440106 |
| ECLASS-11.1 | 27440106 |
| ECLASS-12.0 | 27440106 |
| ETIM-5.0 | EC001855 |
Commercial data
| customs tariff number | 85366990 |
|---|---|
| GTIN | 4048879576512 |
| Packaging unit | 1 |
